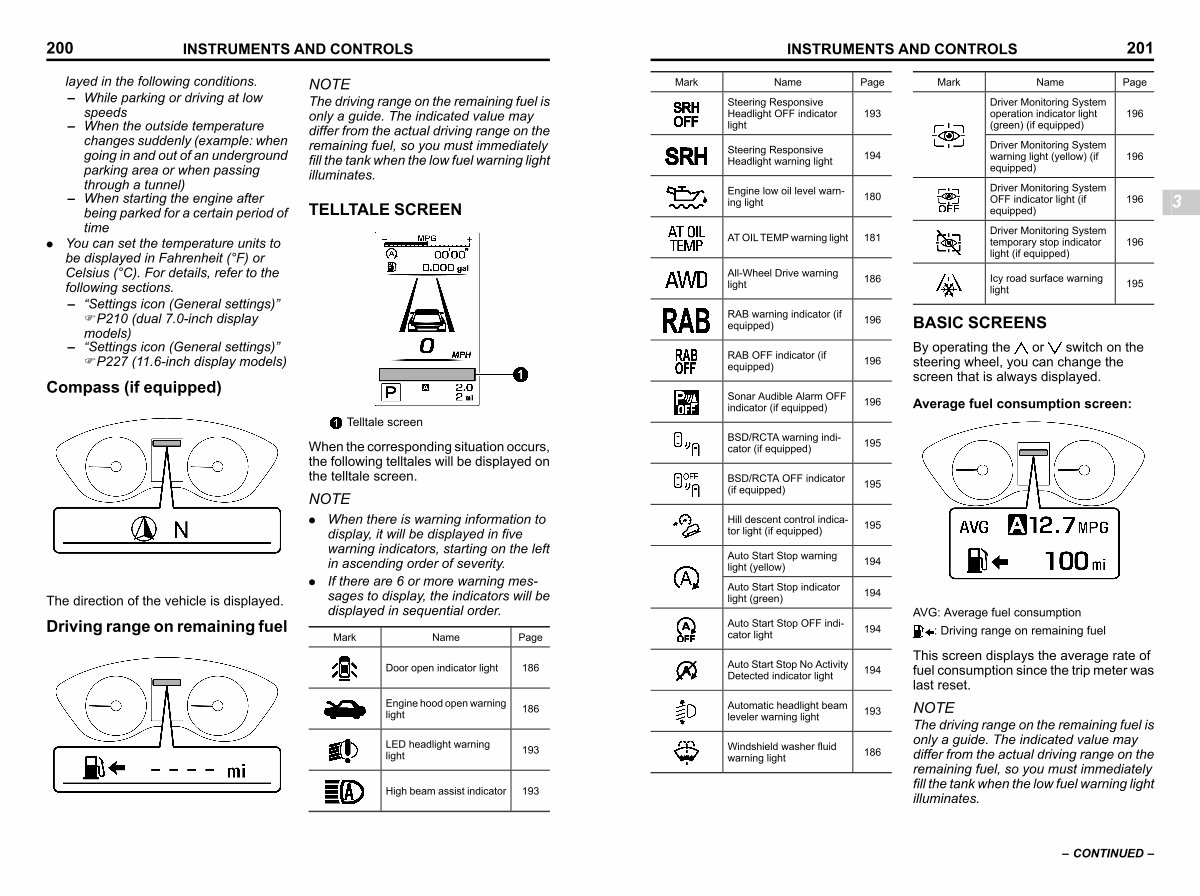

200
INSTRUMENTS AND CONTROLS
layed in the following conditions.
– While parking or driving at low
speeds – When the outside temperature
changes suddenly( example: when going in and out of an underground parking area or when passing
through a tunnel) – When starting the engine after
being parked for a certain period of time
. You can set the temperature units to be displayed in Fahrenheit(° F) or Celsius(° C). For details, refer to the following sections.
–“ Settings icon( General settings)” FP210( dual 7.0-inch display
models) –“ Settings icon( General settings)”
FP227( 11.6-inch display models)
NOTE
The driving range on the remaining fuel is only a guide. The indicated value may differ from the actual driving range on the remaining fuel, so you must immediately fill the tank when the low fuel warning light illuminates.
TELLTALE SCREEN s03bn09
Compass( if equipped) s03bn1203
Telltale screen
S _ 307906-W
S _ 307551-W
The direction of the vehicle is displayed.
Driving range on remaining fuel s03bn1204
When the corresponding situation occurs, the following telltales will be displayed on the telltale screen.
NOTE
. When there is warning information to display, it will be displayed in five warning indicators, starting on the left in ascending order of severity.
. If there are 6 or more warning messages to display, the indicators will be displayed in sequential order.
Mark Name Page
Door open indicator light 186
Engine hood open warning light
186
LED headlight warning light
193
High beam assist indicator 193
S _ 307552-W
