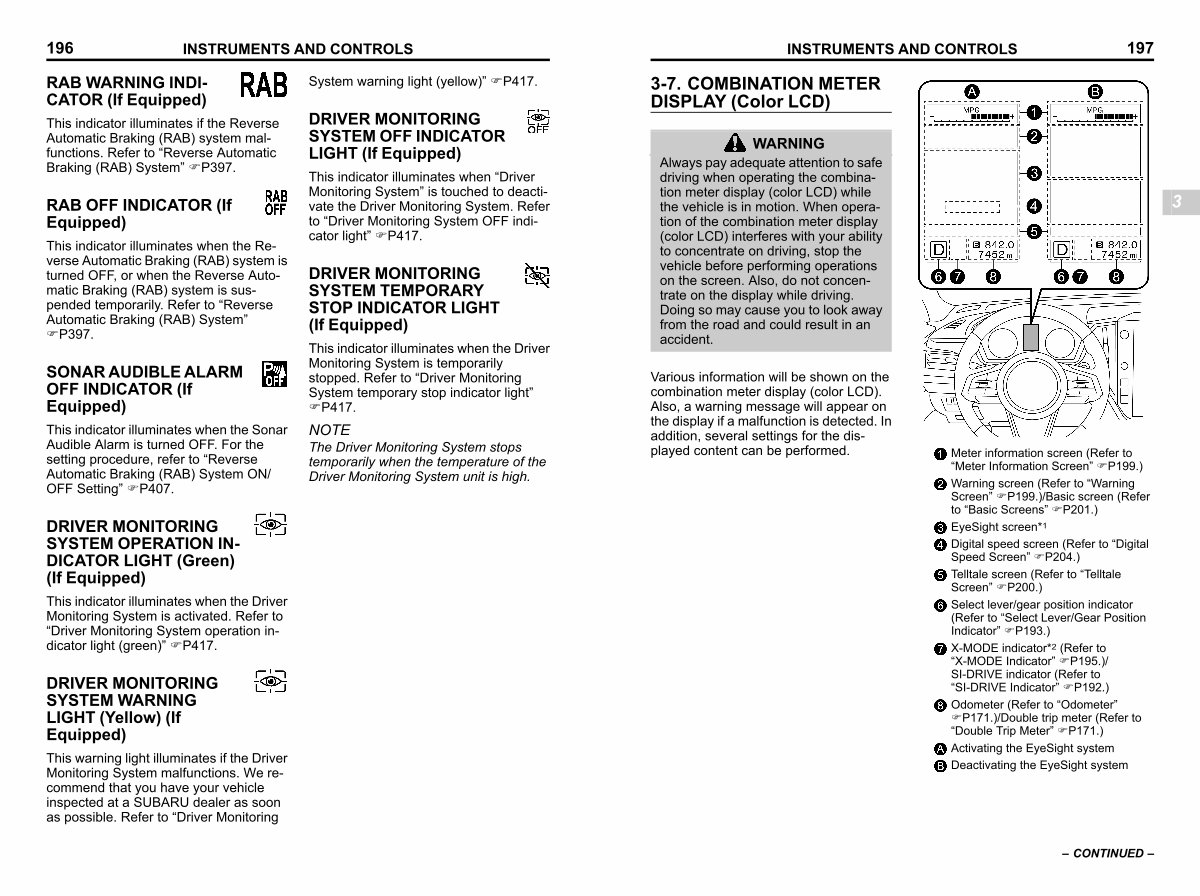

3-7. COMBINATION METER DISPLAY( Color LCD)
INSTRUMENTS AND CONTROLS 197
s03bn
WARNING
Always pay adequate attention to safe driving when operating the combination meter display( color LCD) while the vehicle is in motion. When operation of the combination meter display( color LCD) interferes with your ability to concentrate on driving, stop the vehicle before performing operations on the screen. Also, do not concentrate on the display while driving. Doing so may cause you to look away from the road and could result in an accident.
3
Various information will be shown on the combination meter display( color LCD). Also, a warning message will appear on the display if a malfunction is detected. In addition, several settings for the displayed content can be performed.
S _ 307904-W
Meter information screen( Refer to“ Meter Information Screen” FP199.)
Warning screen( Refer to“ Warning Screen” FP199.)/ Basic screen( Refer to“ Basic Screens” FP201.)
EyeSight screen * 1
Digital speed screen( Refer to“ Digital Speed Screen” FP204.)
Telltale screen( Refer to“ Telltale Screen” FP200.)
Select lever / gear position indicator( Refer to“ Select Lever / Gear Position Indicator” FP193.)
X-MODE indicator * 2( Refer to“ X-MODE Indicator” FP195.)/ SI-DRIVE indicator( Refer to“ SI-DRIVE Indicator” FP192.)
Odometer( Refer to“ Odometer” FP171.)/ Double trip meter( Refer to“ Double Trip Meter” FP171.)
Activating the EyeSight system Deactivating the EyeSight system
