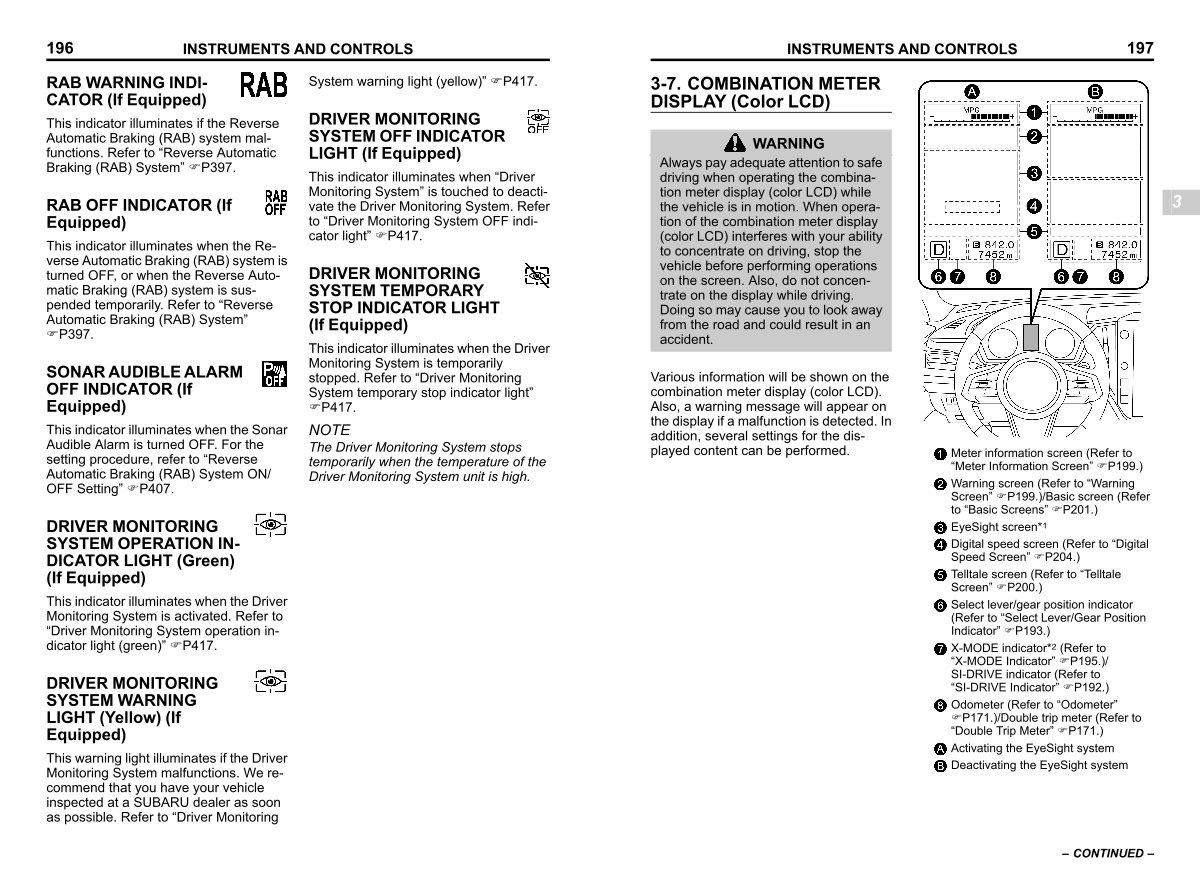

196
INSTRUMENTS AND CONTROLS
RAB WARNING INDI- CATOR( If Equipped) s03ae91
This indicator illuminates if the Reverse Automatic Braking( RAB) system malfunctions. Refer to“ Reverse Automatic Braking( RAB) System” FP397.
RAB OFF INDICATOR( If Equipped) s03ae92
This indicator illuminates when the Reverse Automatic Braking( RAB) system is turned OFF, or when the Reverse Automatic Braking( RAB) system is suspended temporarily. Refer to“ Reverse Automatic Braking( RAB) System” FP397.
SONAR AUDIBLE ALARM OFF INDICATOR( If Equipped) s03ae93
This indicator illuminates when the Sonar Audible Alarm is turned OFF. For the setting procedure, refer to“ Reverse Automatic Braking( RAB) System ON / OFF Setting” FP407.
System
warning light( yellow)” FP417.
DRIVER MONITORING SYSTEM OFF INDICATOR LIGHT( If Equipped) s03aea5
This indicator illuminates when“ Driver Monitoring System” is touched to deactivate the Driver Monitoring System. Refer to“ Driver Monitoring System OFF indicator light” FP417.
DRIVER MONITORING SYSTEM TEMPORARY STOP INDICATOR LIGHT( If Equipped) s03aea6
This indicator illuminates when the Driver Monitoring System is temporarily stopped. Refer to“ Driver Monitoring System temporary stop indicator light” FP417.
NOTE
The Driver Monitoring System stops temporarily when the temperature of the Driver Monitoring System unit is high.
DRIVER MONITORING SYSTEM OPERATION IN- DICATOR LIGHT( Green)( If Equipped) s03aea4
This indicator illuminates when the Driver Monitoring System is activated. Refer to“ Driver Monitoring System operation indicator light( green)” FP417.
DRIVER MONITORING SYSTEM WARNING LIGHT( Yellow)( If Equipped) s03aeb6
This warning light illuminates if the Driver Monitoring System malfunctions. We recommend that you have your vehicle inspected at a SUBARU dealer as soon as possible. Refer to“ Driver Monitoring
