INSTRUMENTS AND CONTROLS 171

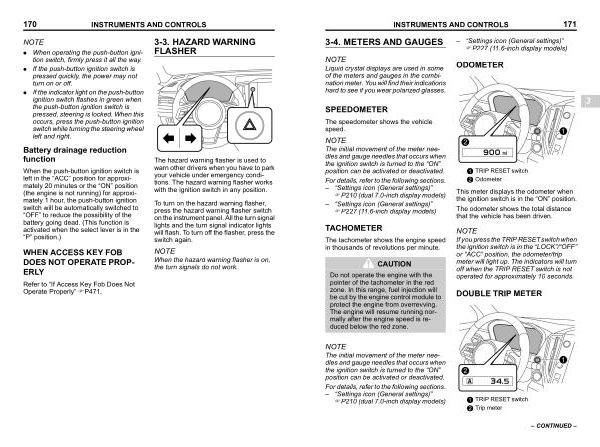

3-4 . METERS AND GAUGES s03ad
NOTE
Liquid crystal displays are used in some of the meters and gauges in the combination meter . You will find their indications hard to see if you wear polarized glasses .
SPEEDOMETER s03ad03
The speedometer shows the vehicle speed .
NOTE
The initial movement of the meter needles and gauge needles that occurs when the ignition switch is turned to the “ ON ” position can be activated or deactivated .
For details , refer to the following sections . – “ Settings icon ( General settings )” FP210 ( dual 7.0-inch display models )
– “ Settings icon ( General settings )” FP227 ( 11.6-inch display models )
TACHOMETER s03ad06
The tachometer shows the engine speed in thousands of revolutions per minute .
CAUTION
Do not operate the engine with the pointer of the tachometer in the red zone . In this range , fuel injection will be cut by the engine control module to protect the engine from overrevving . The engine will resume running normally after the engine speed is reduced below the red zone .
– “ Settings icon ( General settings )” FP227 ( 11.6-inch display models )
ODOMETER
TRIP RESET switch Odometer s03ad04
S _ 307896-W
This meter displays the odometer when the ignition switch is in the “ ON ” position .
The odometer shows the total distance that the vehicle has been driven .
NOTE
If you press the TRIP RESETswitch when the ignition switch is in the “ LOCK ”/“ OFF ” or “ ACC ” position , the odometer / trip meter will light up . The indicators will turn off when the TRIP RESET switch is not operated for approximately 10 seconds .
DOUBLE TRIP METER s03ad05
3
NOTE
The initial movement of the meter needles and gauge needles that occurs when the ignition switch is turned to the “ ON ” position can be activated or deactivated .
For details , refer to the following sections . – “ Settings icon ( General settings )” FP210 ( dual 7.0-inch display models )
TRIP RESET switch Trip meter
S _ 307897-W
– CONTINUED –
