146
KEYS AND DOORS

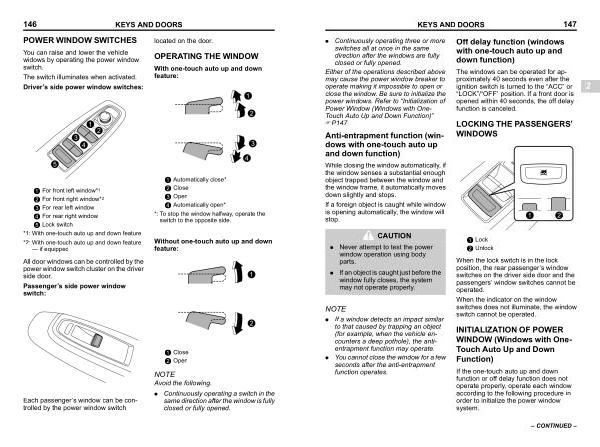

POWER WINDOW SWITCHES s02ah09
You can raise and lower the vehicle widows by operating the power window switch.
The switch illuminates when activated. Driver’ s side power window switches:
located on the door.
OPERATING THE WINDOW s02ah10
With one-touch auto up and down feature:
S _ 204484-MW
For front left window * 1 For front right window * 2 For rear left window For rear right window Lock switch * 1: With one-touch auto up and down feature
* 2: With one-touch auto up and down feature— if equipped
All door windows can be controlled by the power window switch cluster on the driver side door.
Passenger’ s side power window switch:
S _ 204485-MW
Automatically close * Close Open Automatically open *
*: To stop the window halfway, operate the switch to the opposite side.
Without one-touch auto up and down feature:
Close Open
S _ 204486-MW
S _ 204393-W
Each passenger’ s window can be controlled by the power window switch
NOTE Avoid the following.
. Continuously operating a switch in the same direction after the window is fully closed or fully opened.
