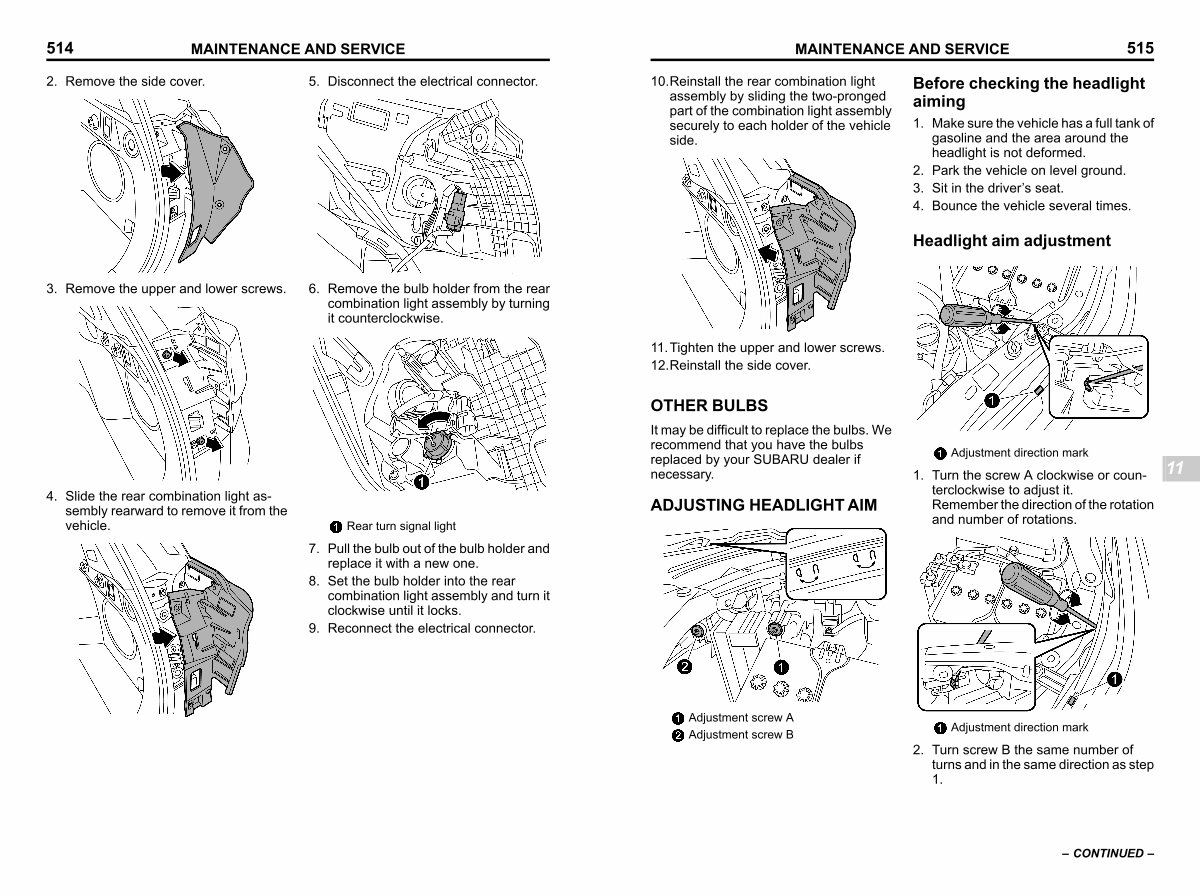

MAINTENANCE AND SERVICE 515
10. Reinstall the rear combination light assembly by sliding the two-pronged part of the combination light assembly securely to each holder of the vehicle side.
Before checking the headlight aiming s11be5701
1. Make sure the vehicle has a full tank of gasoline and the area around the headlight is not deformed.
2. Park the vehicle on level ground. 3. Sit in the driver’ s seat. 4. Bounce the vehicle several times.
Headlight aim adjustment s11be5702
S _ B02405-W
11. Tighten the upper and lower screws. 12. Reinstall the side cover.
OTHER BULBS s11be29
It may be difficult to replace the bulbs. We recommend that you have the bulbs replaced by your SUBARU dealer if necessary.
ADJUSTING HEADLIGHT AIM s11be57
Adjustment direction mark
S _ B02495-W
1. Turn the screw A clockwise or counterclockwise to adjust it. Remember the direction of the rotation and number of rotations.
11
Adjustment screw A Adjustment screw B
S _ B02494-W
Adjustment direction mark
S _ B02496-W
2. Turn screw B the same number of turns and in the same direction as step 1.
– CONTINUED –
