514

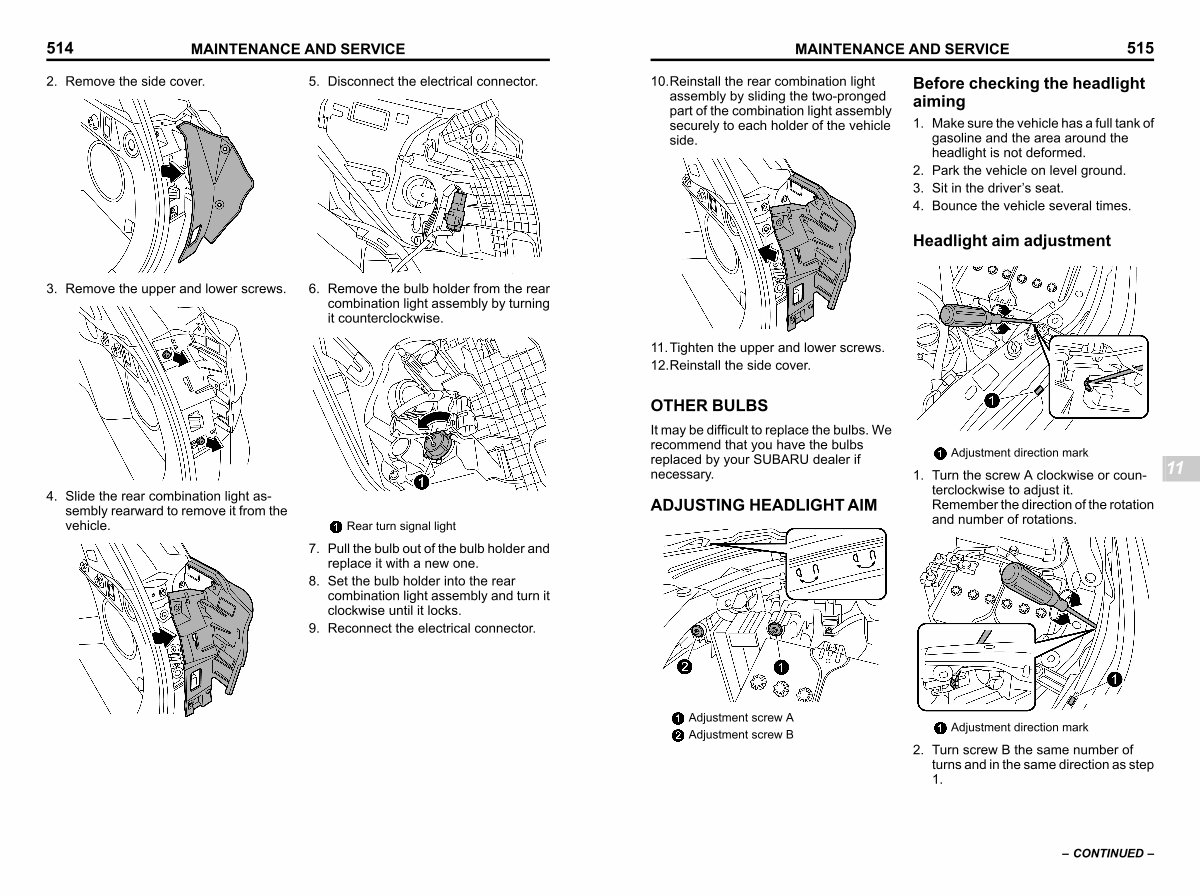

MAINTENANCE AND SERVICE
2. Remove the side cover. 5. Disconnect the electrical connector.
S _ B02400-W
3. Remove the upper and lower screws.
S _ B02403-W
6. Remove the bulb holder from the rear combination light assembly by turning it counterclockwise.
S _ B02401-W
4. Slide the rear combination light assembly rearward to remove it from the vehicle.
Rear turn signal light
S _ B02493-W
7. Pull the bulb out of the bulb holder and replace it with a new one.
8. Set the bulb holder into the rear combination light assembly and turn it clockwise until it locks.
9. Reconnect the electrical connector.
S _ B02402-W
