IN CASE OF EMERGENCY 445
reached.

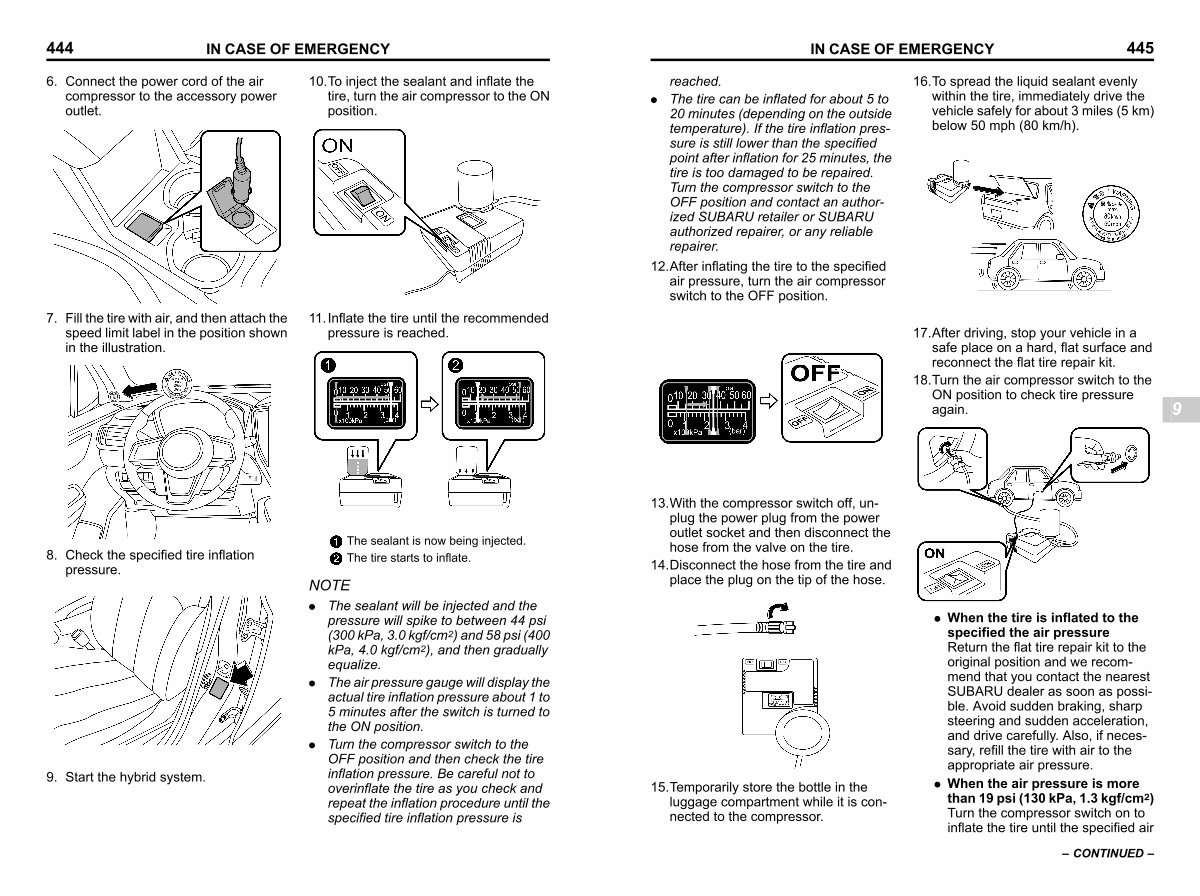

. The tire can be inflated for about 5 to 20 minutes( depending on the outside temperature). If the tire inflation pressure is still lower than the specified point after inflation for 25 minutes, the tire is too damaged to be repaired. Turn the compressor switch to the OFF position and contact an authorized SUBARU retailer or SUBARU authorized repairer, or any reliable repairer.
12. After inflating the tire to the specified air pressure, turn the air compressor switch to the OFF position.
16. To spread the liquid sealant evenly within the tire, immediately drive the vehicle safely for about 3 miles( 5 km) below 50 mph( 80 km / h).
S _ 901568-W
17. After driving, stop your vehicle in a safe place on a hard, flat surface and reconnect the flat tire repair kit.
18. Turn the air compressor switch to the ON position to check tire pressure again.
9
S _ 901566-W
13. With the compressor switch off, unplug the power plug from the power outlet socket and then disconnect the hose from the valve on the tire.
14. Disconnect the hose from the tire and place the plug on the tip of the hose.
S _ 901567-W
15. Temporarily store the bottle in the luggage compartment while it is connected to the compressor.
S _ 901569-W
. When the tire is inflated to the specified the air pressure Return the flat tire repair kit to the original position and we recommend that you contact the nearest SUBARU dealer as soon as possible. Avoid sudden braking, sharp steering and sudden acceleration, and drive carefully. Also, if necessary, refill the tire with air to the appropriate air pressure.
. When the air pressure is more than 19 psi( 130 kPa, 1.3 kgf / cm 2) Turn the compressor switch on to inflate the tire until the specified air
– CONTINUED –
