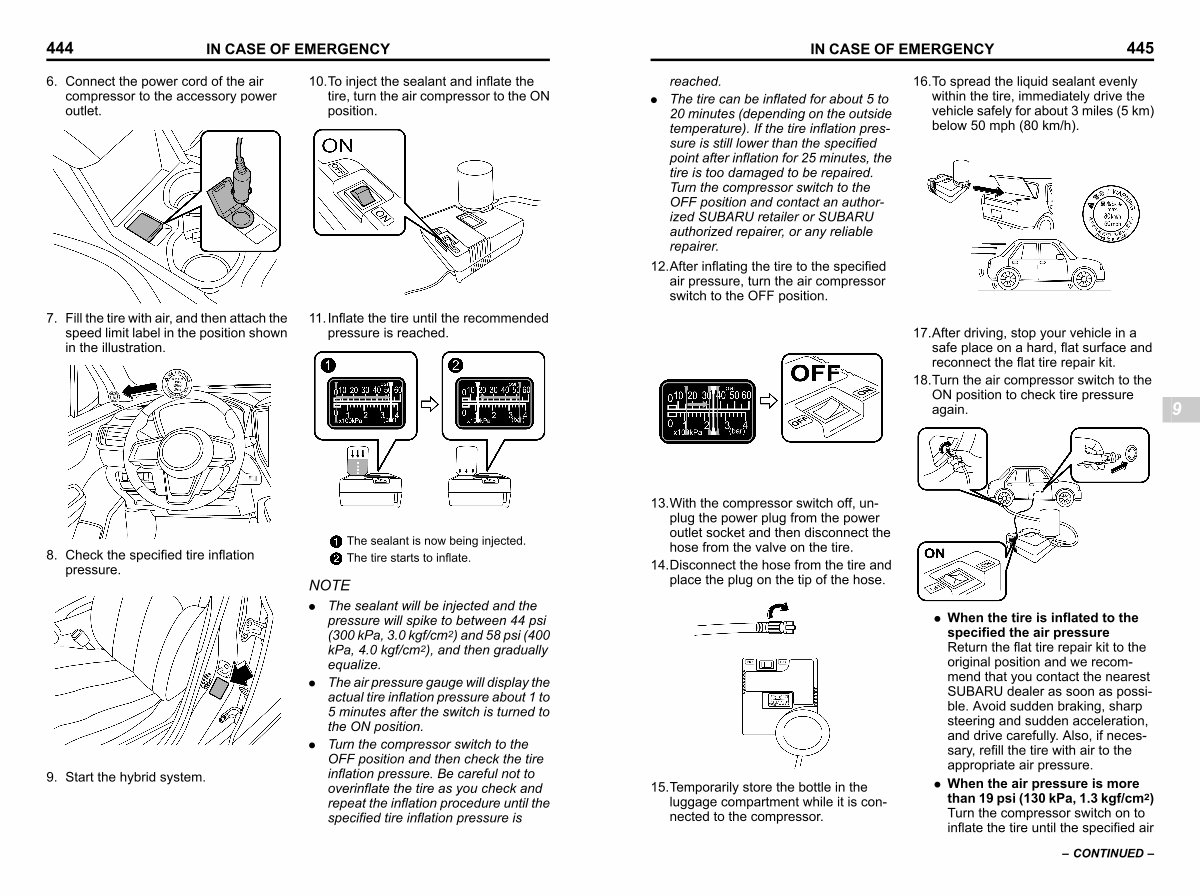

444
IN CASE OF EMERGENCY
6. Connect the power cord of the air compressor to the accessory power outlet.
10. To inject the sealant and inflate the tire, turn the air compressor to the ON position.
S _ 901561-W
7. Fill the tire with air, and then attach the speed limit label in the position shown in the illustration.
S _ 901564-W
11. Inflate the tire until the recommended pressure is reached.
8. Check the specified tire inflation pressure.
9. Start the hybrid system.
S _ 901562-W
S _ 901563-W
S _ 901565-W
The sealant is now being injected. The tire starts to inflate.
NOTE
. The sealant will be injected and the pressure will spike to between 44 psi( 300 kPa, 3.0 kgf / cm 2) and 58 psi( 400 kPa, 4.0 kgf / cm 2), and then gradually equalize.
. The air pressure gauge will display the actual tire inflation pressure about 1 to 5 minutes after the switch is turned to the ON position.
. Turn the compressor switch to the OFF position and then check the tire inflation pressure. Be careful not to overinflate the tire as you check and repeat the inflation procedure until the specified tire inflation pressure is
