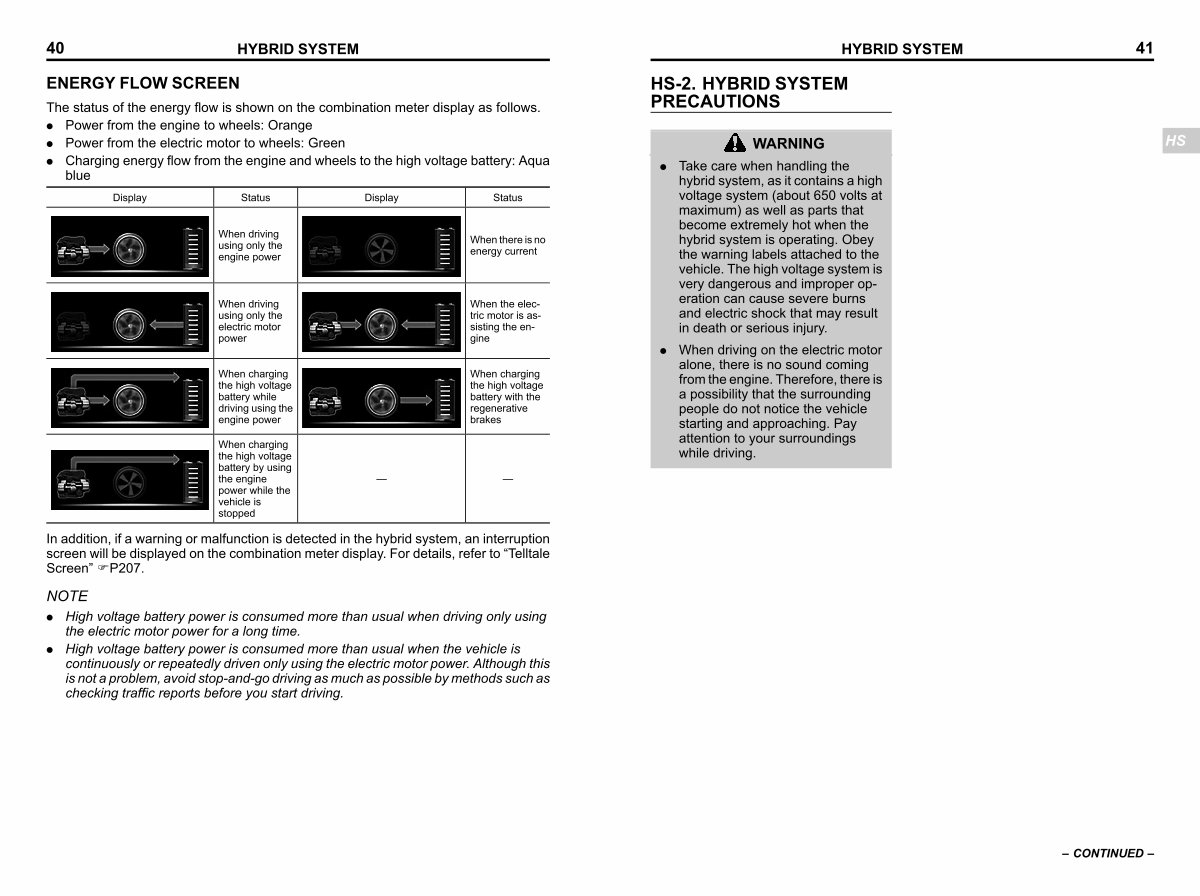

HYBRID SYSTEM ENERGY FLOW SCREEN shsaa08
The status of the energy flow is shown on the combination meter display as follows.
. Power from the engine to wheels: Orange. Power from the electric motor to wheels: Green
. Charging energy flow from the engine and wheels to the high voltage battery: Aqua blue
Display Status Display Status
ZOM0913 |
When driving using only the engine power |
ZOM0916 |
When there is no energy current |
ZOM0914 |
When driving using only the electric motor power |
ZOM0917 |
When the electric motor is assisting the engine |
ZOM0915 |
When charging the high voltage battery while driving using the engine power |
ZOM0918 |
When charging the high voltage battery with the regenerative brakes |
ZOM0919
When charging the high voltage battery by using the engine power while the vehicle is stopped
——
In addition, if a warning or malfunction is detected in the hybrid system, an interruption screen will be displayed on the combination meter display. For details, refer to“ Telltale Screen” FP207.
NOTE
. High voltage battery power is consumed more than usual when driving only using the electric motor power for a long time.
. High voltage battery power is consumed more than usual when the vehicle is continuously or repeatedly driven only using the electric motor power. Although this is not a problem, avoid stop-and-go driving as much as possible by methods such as checking traffic reports before you start driving.
