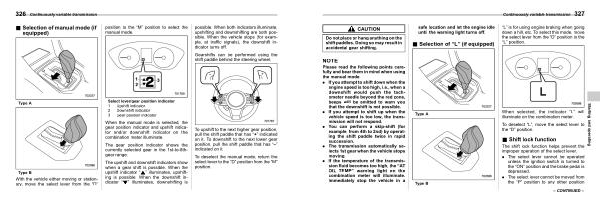

326
Continuously variable transmission
& Selection of manual mode ( if equipped )
S07BG02
position to the “ M ” position to select the manual mode .
possible . When both indicators illuminate , upshifting and downshifting are both possible . When the vehicle stops ( for example , at traffic signals ), the downshift indicator turns off .
Gearshifts can be performed using the shift paddle behind the steering wheel .
Type A
Type B
With the vehicle either moving or stationary , move the select lever from the “ D ”
Select lever / gear position indicator 1 Upshift indicator 2 Downshift indicator 3 Gear position indicator
When the manual mode is selected , the gear position indicator and upshift indicator and / or downshift indicator on the combination meter illuminate .
The gear position indicator shows the currently selected gear in the 1st-to-8thgear range .
The upshift and downshift indicators show when a gear shift is possible . When the upshift indicator “ ” illuminates , upshifting is possible . When the downshift indicator “ ” illuminates , downshifting is
To upshift to the next higher gear position , pull the shift paddle that has “+” indicated on it . To downshift to the next lower gear position , pull the shift paddle that has “–” indicated on it .
To deselect the manual mode , return the select lever to the “ D ” position from the “ M ” position .
