298
Front View Monitor
. Approximately 9 seconds have passed since the last operation .
. The parking brake is applied .
& How to adjust the display contrast and brightness
S06BA06
The contrast and brightness of the front view monitor display can be adjusted . For details , refer to “ Camera settings ” FP225 .

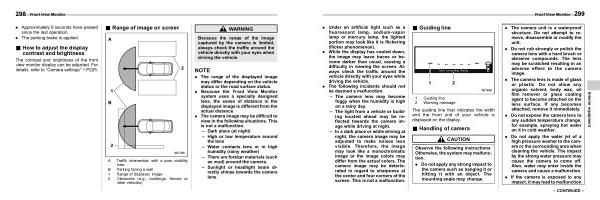

& Range of image on screen
S06BA03
A Traffic intersection with a poor visibility view
B Parking facing a wall 1 Range of displayed image
2 Obstacles ( e . g ., buildings , fences or other vehicles )
WARNING
Because the range of the image captured by the camera is limited , always check the traffic around the vehicle directly with your eyes when driving the vehicle .
NOTE
. The range of the displayed image may differ depending on the vehicle status or the road surface status .
. Because the Front View Monitor system uses a specially designed lens , the sense of distance in the displayed image is different from the actual distance .
. The camera image may be difficult to view in the following situations . This is not a malfunction . – Dark place ( at night ) – High or low temperature around the lens – Water contacts lens or in high humidity ( rainy weather ) – There are foreign materials ( such as mud ) around the camera .
– Sunlight or headlight beam directly shines towards the camera lens .
