Front View Monitor 297 |
|||||
|
accident may occur . When driving the vehicle , always check the traffic around the vehicle directly with your eyes and the mirrors .
. Always operate the vehicle as you would without the Front View Monitor .
. Do not use the Front View Monitor in the following situations .
– You are driving on a dirt road or a road covered in snow .
– The camera malfunctions ( e . g . the lens or bracket is broken ).
. If the outside temperature is low , the monitor screen may become dark or the image may become dim . In particular , the image of a moving object may be distorted or disappear from the screen . You must always check the traffic around the vehicle directly with your eyes when driving it .
|

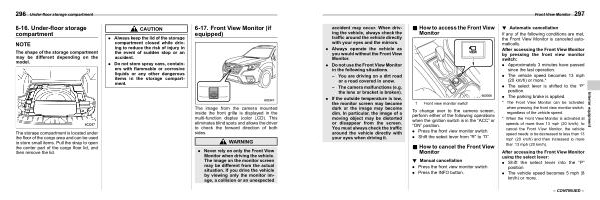

& How to access the Front View Monitor
S06BA01
|
1 Front view monitor switch
To change over to the camera screen , perform either of the following operations when the ignition switch is in the “ ACC ” or “ ON ” position .
. Press the front view monitor switch . . Shift the select lever from “ R ” to “ D ”.
& How to cancel the Front View Monitor
S06BA02
! Manual cancellation
S06BA0201
. Press the front view monitor switch . . Press the INFO button .
|
! Automatic cancellation
S06BA0202
If any of the following conditions are met , the Front View Monitor is canceled automatically .
After accessing the Front View Monitor by pressing the front view monitor switch :
. Approximately 3 minutes have passed since the last operation .
. The vehicle speed becomes 13 mph ( 20 km / h ) or more .*
. The select lever is shifted to the “ P ” position .
. The parking brake is applied .
*: The Front View Monitor can be activated when pressing the front view monitor switch , regardless of the vehicle speed .
*: When the Front View Monitor is activated at speeds of more than 13 mph ( 20 km / h ), to cancel the Front View Monitor , the vehicle speed needs to be decreased to less than 13 mph ( 20 km / h ) and then increased to more than 13 mph ( 20 km / h ).
After accessing the Front View Monitor using the select lever :
. Shift the select lever into the “ P ” position .
. The vehicle speed becomes 5 mph ( 8 km / h ) or more .
|
Interior equipment |
|
– CONTINUED – |
