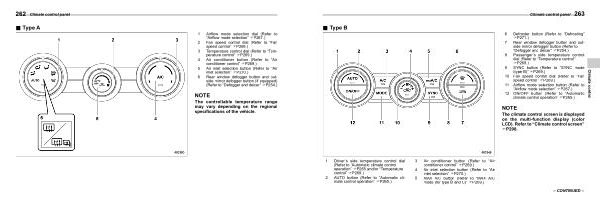

Climate control panel 263
& Type B
S04AG02
6 Defroster button ( Refer to “ Defrosting ” FP271 .)
7 Rear window defogger button and outside mirror defogger button ( Refer to “ Defogger and deicer ” FP254 .)
8 Passenger ’ s side temperature control dial ( Refer to “ Temperature control ” FP269 .)
9 SYNC button ( Refer to “ SYNC mode ( type B )” FP269 .)
10 Fan speed control dial ( Refer to “ Fan speed control ” FP269 .)
11 Airflow mode selection button ( Refer to “ Airflow mode selection ” FP267 .)
12 ON / OFF button ( Refer to “ Automatic climate control operation ” FP265 .)
Climate control
NOTE
The climate control screen is displayed on the multi-function display ( color LCD ). Refer to “ Climate control screen ” FP208 .
1 Driver ’ s side temperature control dial ( Refer to “ Automatic climate control operation ” FP265 and / or “ Temperature control ” FP269 .)
2 AUTO button ( Refer to “ Automatic climate control operation ” FP265 .)
3 Air conditioner button ( Refer to “ Air conditioner control ” FP269 .)
4 Air inlet selection button ( Refer to “ Air inlet selection ” FP270 .)
5 MAX A / C button ( Refer to “ MAX A / C mode ( for type B and C )” FP269 .)
– CONTINUED –
