Combination meter display ( color LCD ) 193
NOTE
. The outside temperature indicator shows the temperature in the area around the sensor . However , the temperature may not be indicated correctly or the update may be delayed in the following conditions . – While parking or driving at low speeds
– When the outside temperature changes suddenly ( example : when going in and out of an underground parking area or when passing through a tunnel )
– When starting the engine after being parked for a certain period of time
. The icy road surface warning screen should be treated only as a guide . Be sure to check the condition of the road surface before driving .
. Once the icy road surface warning screen appears , it will not disappear unless the outside temperature has increased to 418F ( 58C ) or higher .

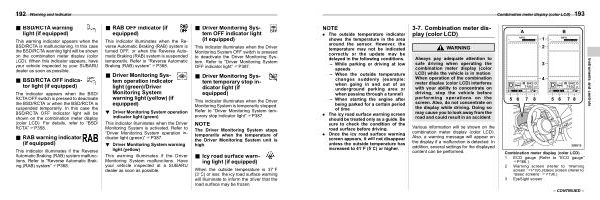

3-7 . Combination meter display ( color LCD )
WARNING
S03BN
Always pay adequate attention to safe driving when operating the combination meter display ( color LCD ) while the vehicle is in motion . When operation of the combination meter display ( color LCD ) interferes with your ability to concentrate on driving , stop the vehicle before performing operations on the screen . Also , do not concentrate on the display while driving . Doing so may cause you to look away from the road and could result in an accident .
Various information will be shown on the combination meter display ( color LCD ). Also , a warning message will appear on the display if a malfunction is detected . In addition , several settings for the displayed content can be performed . Combination meter display ( color LCD )
1 ECO gauge ( Refer to “ ECO gauge ” FP166 .)
2 Warning screen ( Refer to “ Warning screen ” FP195 .)/ Basic screen ( Refer to “ Basic screens ” FP196 .)
3 EyeSight screen
Instruments and controls
– CONTINUED –
