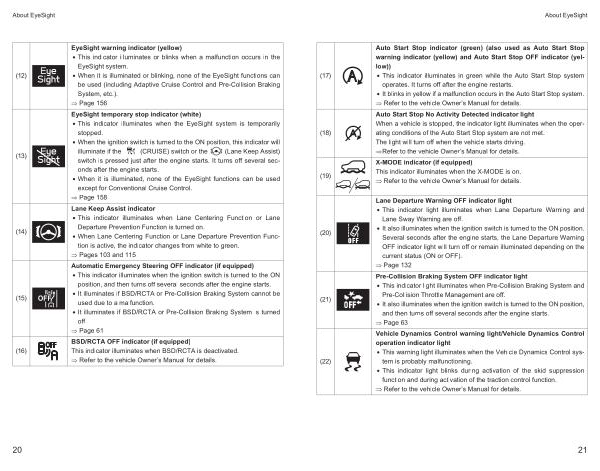

About EyeSight
( 17 )
( 18 )
( 19 )
Auto Start Stop indicator ( green ) ( also used as Auto Start Stop warning indicator ( yellow ) and Auto Start Stop OFF indicator ( yellow ))
• This indicator illuminates in green while the Auto Start Stop system operates . It turns off after the engine restarts .
• It blinks in yellow if a malfunction occurs in the Auto Start Stop system .
� Refer to the vehicle Owner ’ s Manual for details . Auto Start Stop No Activity Detected indicator light When a vehicle is stopped , the indicator light illuminates when the operating conditions of the Auto Start Stop system are not met . The light will turn off when the vehicle starts driving . �Refer to the vehicle Owner ’ s Manual for details . X-MODE indicator ( if equipped ) This indicator illuminates when the X-MODE is on . � Refer to the vehicle Owner ’ s Manual for details .
( 20 )
( 21 )
( 22 )
Lane Departure Warning OFF indicator light
• This indicator light illuminates when Lane Departure Warning and Lane Sway Warning are off .
• It also illuminates when the ignition switch is turned to the ON position . Several seconds after the engine starts , the Lane Departure Warning OFF indicator light will turn off or remain illuminated depending on the current status ( ON or OFF ).
� Page 132
Pre-Collision Braking System OFF indicator light
• This indicator light illuminates when Pre-Collision Braking System and Pre-Collision Throttle Management are off .
• It also illuminates when the ignition switch is turned to the ON position , and then turns off several seconds after the engine starts .
� Page 63 Vehicle Dynamics Control warning light / Vehicle Dynamics Control operation indicator light
• This warning light illuminates when the Vehicle Dynamics Control system is probably malfunctioning .
• This indicator light blinks during activation of the skid suppression function and during activation of the traction control function .
� Refer to the vehicle Owner ’ s Manual for details .
21
