About EyeSight
( 12 )
( 13 )
( 14 )
( 15 )
( 16 )

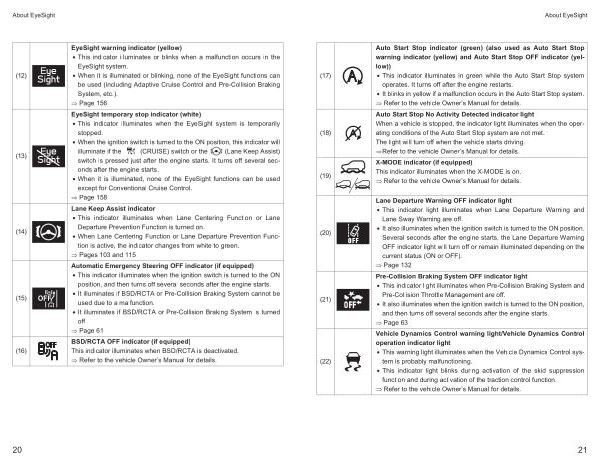

EyeSight warning indicator ( yellow )
• This indicator illuminates or blinks when a malfunction occurs in the EyeSight system .
• When it is illuminated or blinking , none of the EyeSight functions can be used ( including Adaptive Cruise Control and Pre-Collision Braking System , etc .).
� Page 156
EyeSight temporary stop indicator ( white )
• This indicator illuminates when the EyeSight system is temporarily stopped .
• When the ignition switch is turned to the ON position , this indicator will illuminate if the ( CRUISE ) switch or the ( Lane Keep Assist ) switch is pressed just after the engine starts . It turns off several seconds after the engine starts .
• When it is illuminated , none of the EyeSight functions can be used except for Conventional Cruise Control .
� Page 158
Lane Keep Assist indicator
• This indicator illuminates when Lane Centering Function or Lane Departure Prevention Function is turned on .
• When Lane Centering Function or Lane Departure Prevention Function is active , the indicator changes from white to green .
� Pages 103 and 115
Automatic Emergency Steering OFF indicator ( if equipped )
• This indicator illuminates when the ignition switch is turned to the ON position , and then turns off several seconds after the engine starts .
• It illuminates if BSD / RCTA or Pre-Collision Braking System cannot be used due to a malfunction .
• It illuminates if BSD / RCTA or Pre-Collision Braking System is turned off .
� Page 61 BSD / RCTA OFF indicator ( if equipped ) This indicator illuminates when BSD / RCTA is deactivated .
� Refer to the vehicle Owner ’ s Manual for details .
20
