476

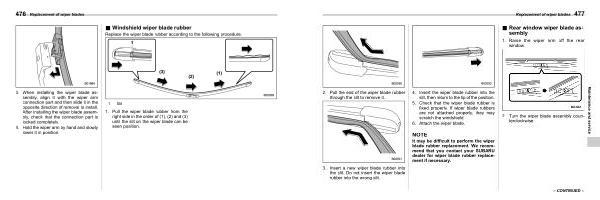

Replacement of wiper blades
& Windshield wiper blade rubber
S11AZ05
Replace the wiper blade rubber according to the following procedure .
3 . When installing the wiper blade assembly , align it with the wiper arm connection part and then slide it in the opposite direction of removal to install . After installing the wiper blade assembly , check that the connection part is locked completely .
4 . Hold the wiper arm by hand and slowly lower it in position .
1 Slit
1 . Pull the wiper blade rubber from the right side in the order of ( 1 ), ( 2 ) and ( 3 ) until the slit on the wiper blade can be seen position .
