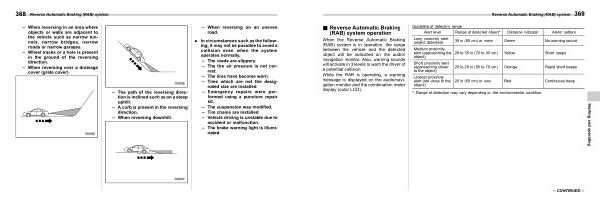

Reverse Automatic Braking ( RAB ) system 369
& Reverse Automatic Braking ( RAB ) system operation
S07BN03
When the Reverse Automatic Braking ( RAB ) system is in operation , the range between the vehicle and the detected object will be indicated on the audio / navigation monitor . Also , warning sounds will activate in 3 levels to warn the driver of a potential collision .
While the RAB is operating , a warning message is displayed on the audio / navigation monitor and the combination meter display ( color LCD ).
Guideline of detecting range |
Alert level |
Range of detected object * |
Distance indicator |
Alarm pattern |
|
Long proximity alert
( object detected )
|
35 in ( 90 cm ) or more |
Green |
No warning sound |
Medium proximity alert ( approaching the |
28 to 35 in ( 70 to 90 cm ) |
Yellow |
Short beeps |
object ) |
|
|
|
Short proximity alert ( approaching closer to the object ) |
20 to 28 in ( 50 to 70 cm ) |
Orange |
Rapid short beeps |
Closest proximity alert ( too close to the object ) |
20 in ( 50 cm ) or less |
Red |
Continuous beep |
*: Range of detection may vary depending on the environmental condition .
