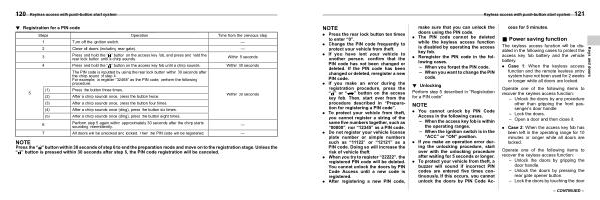

! Registration for a PIN code | ||||
S02AP2102 | ||||
Steps |
Operation |
Time from the previous step |
||
1 |
Turn off the ignition switch . |
— |
||
2 |
Close all doors ( including rear gate ). |
— |
||
3 |
Press and hold the “
” button on the access key fob , and press and hold the rear lock button until a chirp sounds .
|
Within 5 seconds |
||
4 |
Press and hold the “ |
” button on the access key fob until a chirp sounds . |
Within 30 seconds |
|
The PIN code is inputted by using the rear lock button within 30 seconds after the chirp sound of step 4 . For example , to register “ 32468 ” as the PIN code , perform the following procedure . |
||||
5 |
( 1 )
( 2 )
|
Press the button three times .
After a chirp sounds once , press the button twice .
|
Within 30 seconds |
|
( 3 ) |
After a chirp sounds once , press the button four times . |
|||
( 4 ) |
After a chirp sounds once ( ding ), press the button six times . |
|||
( 5 ) |
After a chirp sounds once ( ding ), press the button eight times . |
|||
6 |
Perform step 5 again within approximately 30 seconds after the chirp starts sounding intermittently . |
— |
||
7 |
All doors will be unlocked and locked . Then the PIN code will be registered . |
— |
||
