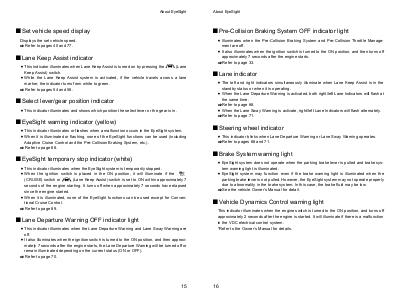

About EyeSight
■ Set vehicle speed display
Displays the set vehicle speed.
Refer to pages 40 and 77.
■ Lane Keep Assist indicator
x This indicator illuminates when Lane Keep Assist is turned on by pressing the
(Lane
Keep Assist) switch.
x While the Lane Keep Assist system is activated, if the vehicle travels across a lane
marker, the indicator turns from white to green.
Refer to pages 54 and 58.
■ Select lever/gear position indicator
x This indicator illuminates and shows which position the select lever or the gear is in.
■ EyeSight warning indicator (yellow)
x This indicator illuminates or flashes when a malfunction occurs in the EyeSight system.
x When it is illuminated or flashing, none of the EyeSight functions can be used (including
Adaptive Cruise Control and the Pre-Collision Braking System, etc.).
Refer to page 88.
■ EyeSight temporary stop indicator (white)
x This indicator illuminates when the EyeSight system is temporarily stopped.
x When the ignition switch is placed in the ON position, it will illuminate if the
(CRUISE) switch or
(Lane Keep Assist) switch is set to ON within approximately 7
seconds of the engine starting. It turns off when approximately 7 seconds have elapsed
since the engine started.
x When it is illuminated, none of the EyeSight functions can be used except for Conventional Cruise Control.
Refer to page 89.
■ Lane Departure Warning OFF indicator light
x This indicator illuminates when the Lane Departure Warning and Lane Sway Warning are
off.
x It also illuminates when the ignition switch is turned to the ON position, and then approximately 7 seconds after the engine starts, the Lane Departure Warning will be turned off or
remain illuminated depending on the current status (ON or OFF).
Refer to page 70.
15
