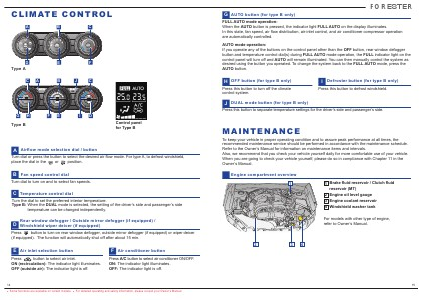

CLIMATE CONTROL
A
B
C
D
Type A
E
F
C
G
H
A
B
F
E
J
C
I
D
Type B
Control panel
for Type B
A Airflow mode selection dial / button
Turn dial or press the button to select the desired air flow mode. For type A, to defrost windshield,
place the dial in the
or
position.
B Fan speed control dial
Turn dial to turn on and to select fan speeds.
C Temperature control dial
Turn the dial to set the preferred interior temperature.
Type B: When the DUAL mode is selected, the setting of the driver’s side and passenger’s side
temperature can be changed independently.
Rear window defogger / Outside mirror defogger (if equipped) /
D Windshield wiper deicer (if equipped)
Press
button to turn on rear window defogger, outside mirror defogger (if equipped) or wiper deicer
(if equipped). The function will automatically shut off after about 15 min.
E Air inlet selection button
Press
button to select air inlet.
ON (recirculation): The indicator light illuminates.
OFF (outside air): The indicator light is off.
F Air conditioner button
Press A/C button to select air conditioner ON/OFF.
ON: The indicator light illuminates.
OFF: The indicator light is off.
14
