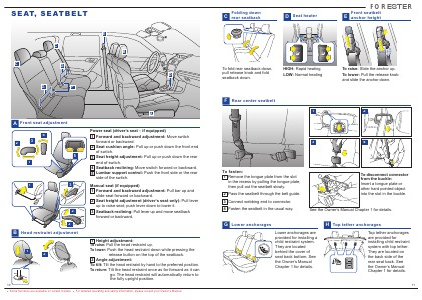

SEAT, SEATBELT
E
C
C
B
G
D
G
F
A
A Front seat adjustment
3
2
4
5
1
3
1
2
Power seat (driver’s seat – if equipped)
1 Forward and backward adjustment: Move switch
forward or backward.
2 Seat cushion angle: Pull up or push down the front end
of switch.
3 Seat height adjustment: Pull up or push down the rear
end of switch.
4 Seatback reclining: Move switch forward or backward.
5 Lumbar support control: Push the front side or the rear
side of the switch.
Manual seat (if equipped)
1 Forward and backward adjustment: Pull bar up and
slide seat forward or backward.
2 Seat height adjustment (driver’s seat only): Pull lever
up to raise seat; push lever down to lower it.
3 Seatback reclining: Pull lever up and move seatback
forward or backward.
2
B Head restraint adjustment
1
2
1 Height adjustment:
To raise: Pull the head restraint up.
To lower: Push the head restraint down while pressing the
release button on the top of the seatback.
2 Angle adjustment:
To tilt: Tilt the head restraint by hand to the preferred position.
To return: Tilt the head restraint once as far forward as it can
go. The head restraint will automatically return to
the fully upright position.
10
Some functions are available on certain models. For detailed operating and safety information, please consult your Owner’s Manual.
