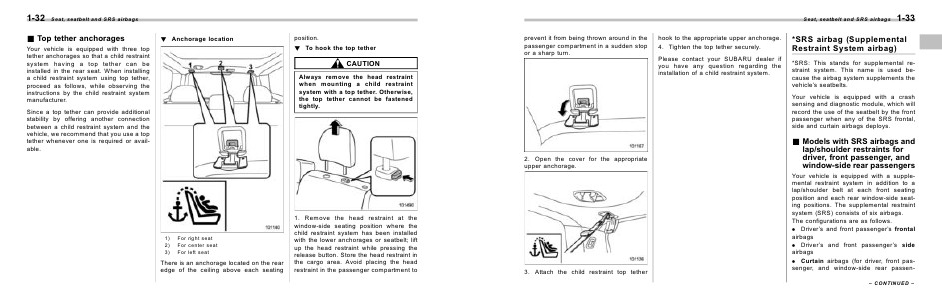

1-32
Seat, seatbelt and SRS airbags
& Top tether anchorages
! Anchorage location
Your vehicle is equipped with three top
tether anchorages so that a child restraint
system having a top tether can be
installed in the rear seat. When installing
a child restraint system using top tether,
proceed as follows, while observing the
instructions by the child restraint system
manufacturer.
position.
! To hook the top tether
CAUTION
Always remove the head restraint
when mounting a child restraint
system with a top tether. Otherwise,
the top tether cannot be fastened
tightly.
Since a top tether can provide additional
stability by offering another connection
between a child restraint system and the
vehicle, we recommend that you use a top
tether whenever one is required or available.
1)
2)
3)
For right seat
For center seat
For left seat
There is an anchorage located on the rear
edge of the ceiling above each seating
1. Remove the head restraint at the
window-side seating position where the
child restraint system has been installed
with the lower anchorages or seatbelt; lift
up the head restraint while pressing the
release button. Store the head restraint in
the cargo area. Avoid placing the head
restraint in the passenger compartment to
