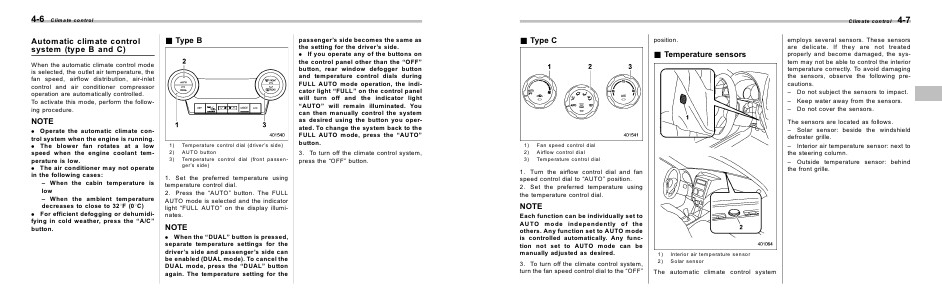

4-6
Climate control
Automatic climate control
system (type B and C)
& Type B
When the automatic climate control mode
is selected, the outlet air temperature, the
fan speed, airflow distribution, air-inlet
control and air conditioner compressor
operation are automatically controlled.
To activate this mode, perform the following procedure.
NOTE
. Operate the automatic climate control system when the engine is running.
. The blower fan rotates at a low
speed when the engine coolant temperature is low.
. The air conditioner may not operate
in the following cases:
– When the cabin temperature is
low
– When the ambient temperature
decreases to close to 328F (08C)
. For efficient defogging or dehumidifying in cold weather, press the “A/C”
button.
1)
2)
3)
Temperature control dial (driver’s side)
AUTO button
Temperature control dial (front passenger’s side)
1. Set the preferred temperature using
temperature control dial.
2. Press the “AUTO” button. The FULL
AUTO mode is selected and the indicator
light “FULL AUTO” on the display illuminates.
NOTE
. When the “DUAL” button is pressed,
separate temperature settings for the
driver’s side and passenger’s side can
be enabled (DUAL mode). To cancel the
DUAL mode, press the “DUAL” button
again. The temperature setting for the
passenger’s side becomes the same as
the setting for the driver’s side.
. If you operate any of the buttons on
the control panel other than the “OFF”
button, rear window defogger button
and temperature control dials during
FULL AUTO mode operation, the indicator light “FULL” on the control panel
will turn off and the indicator light
“AUTO” will remain illuminated. You
can then manually control the system
as desired using the button you operated. To change the system back to the
FULL AUTO mode, press the “AUTO”
button.
3. To turn off the climate control system,
press the “OFF” button.
