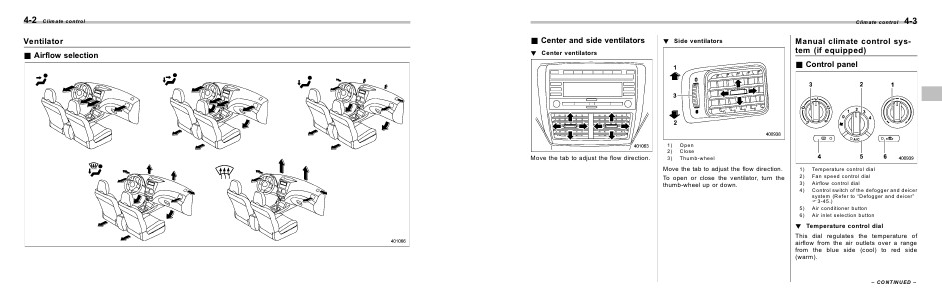

Climate control
& Center and side ventilators
! Side ventilators
! Center ventilators
4-3
Manual climate control system (if equipped)
& Control panel
Move the tab to adjust the flow direction.
1)
2)
3)
Open
Close
Thumb-wheel
Move the tab to adjust the flow direction.
To open or close the ventilator, turn the
thumb-wheel up or down.
1)
2)
3)
4)
5)
6)
Temperature control dial
Fan speed control dial
Airflow control dial
Control switch of the defogger and deicer
system (Refer to “Defogger and deicer”
F3-45.)
Air conditioner button
Air inlet selection button
! Temperature control dial
This dial regulates the temperature of
airflow from the air outlets over a range
from the blue side (cool) to red side
(warm).
– CONTINUED –
