11-50
Maintenance and service
surface.
5. To install the bulb to the headlight
assembly, turn it clockwise until it clicks.
6. Reconnect the electrical connector.
7. Install the air intake duct with clips
(right-hand side).
& Front turn signal light
It may be difficult to replace the bulbs.
Have the bulbs replaced by your SUBARU
dealer if necessary.

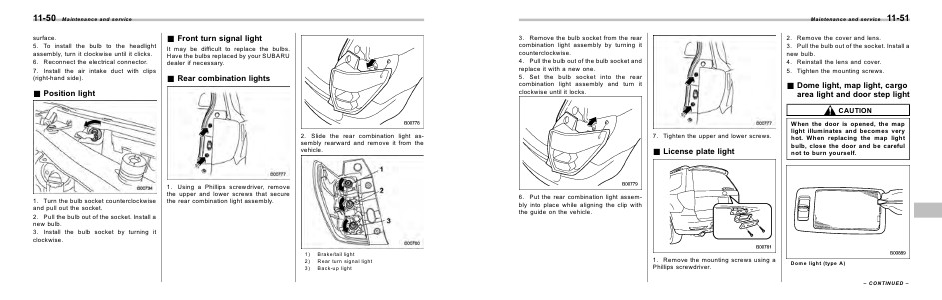

& Rear combination lights
& Position light
2. Slide the rear combination light assembly rearward and remove it from the
vehicle.
1. Turn the bulb socket counterclockwise
and pull out the socket.
2. Pull the bulb out of the socket. Install a
new bulb.
3. Install the bulb socket by turning it
clockwise.
1. Using a Phillips screwdriver, remove
the upper and lower screws that secure
the rear combination light assembly.
1)
2)
3)
Brake/tail light
Rear turn signal light
Back-up light
