376

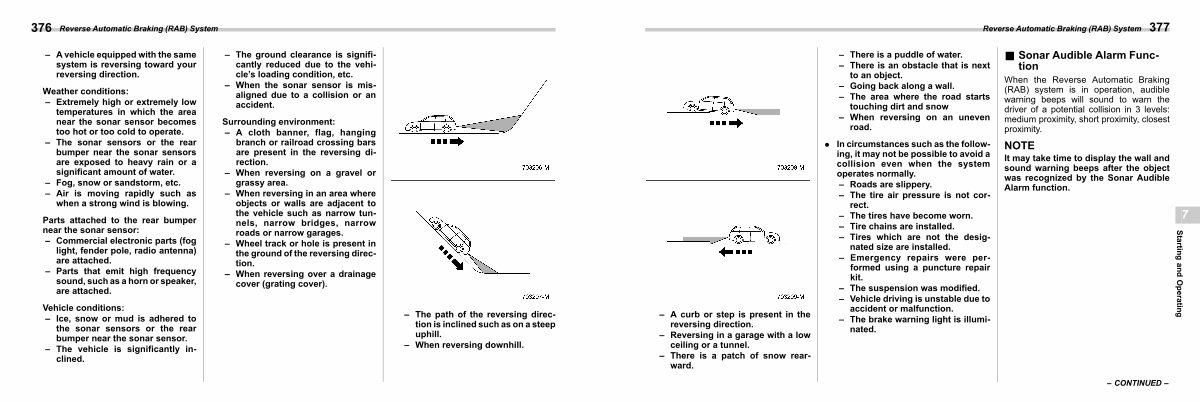

Reverse Automatic Braking( RAB) System
– A vehicle equipped with the same system is reversing toward your reversing direction.
Weather conditions:
– Extremely high or extremely low temperatures in which the area near the sonar sensor becomes too hot or too cold to operate. – The sonar sensors or the rear bumper near the sonar sensors are exposed to heavy rain or a significant amount of water. – Fog, snow or sandstorm, etc. – Air is moving rapidly such as when a strong wind is blowing.
Parts attached to the rear bumper near the sonar sensor: – Commercial electronic parts( fog light, fender pole, radio antenna) are attached.
– Parts that emit high frequency sound, such as a horn or speaker, are attached.
Vehicle conditions:
– Ice, snow or mud is adhered to the sonar sensors or the rear bumper near the sonar sensor. – The vehicle is significantly inclined.
– The ground clearance is significantly reduced due to the vehicle’ s loading condition, etc.
– When the sonar sensor is misaligned due to a collision or an accident.
Surrounding environment:
– A cloth banner, flag, hanging branch or railroad crossing bars are present in the reversing direction.
– When reversing on a gravel or grassy area.
– When reversing in an area where objects or walls are adjacent to the vehicle such as narrow tunnels, narrow bridges, narrow roads or narrow garages.
– Wheel track or hole is present in the ground of the reversing direction.
– When reversing over a drainage cover( grating cover).
– The path of the reversing direction is inclined such as on a steep uphill.
– When reversing downhill.
