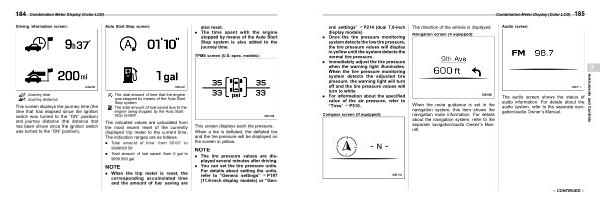

Combination Meter Display ( Color LCD ) 185 |
||||||
|
eral settings ” FP214 ( dual 7.0-inch display models ).
. Once the tire pressure monitoring system detects the low tire pressure , the tire pressure values will display in yellow until the system detects the normal tire pressure .
. Immediately adjust the tire pressure when the warning light illuminates . When the tire pressure monitoring system detects the adjusted tire pressure , the warning light will turn off and the tire pressure values will turn to white .
. For information about the specified value of the air pressure , refer to “ Tires ” FP510 .
Compass screen ( if equipped ):
|
The direction of the vehicle is displayed . Navigation screen ( if equipped ): |
When the route guidance is set in the navigation system , this item shows the navigation route information . For details about the navigation system , refer to the separate navigation / audio Owner ’ s Manual . |
Audio screen : |
The audio screen shows the status of audio information . For details about the audio system , refer to the separate navigation / audio Owner ’ s Manual . |
3
Instruments and Controls
|
|
– CONTINUED – |
