184

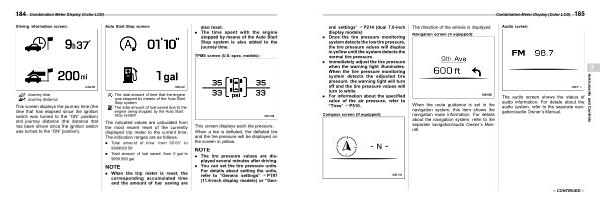

Combination Meter Display ( Color LCD )
Driving information screen : Auto Start Stop screen :
also reset .
. The time spent with the engine stopped by means of the Auto Start Stop system is also added to the journey time .
TPMS screen ( U . S . -spec . models ):
: Journey time : Journey distance
This screen displays the journey time ( the time that has elapsed since the ignition switch was turned to the “ ON ” position ) and journey distance ( the distance that has been driven since the ignition switch was turned to the “ ON ” position ).
: The total amount of time that the engine was stopped by means of the Auto Start Stop system
: The total amount of fuel saved due to the engine being stopped by the Auto Start Stop system
The indicated values are calculated from the most recent reset of the currently displayed trip meter to the current time . The indication ranges are as follows .
. Total amount of time : from 00 ’ 00 @ to 9999h59 ’ 59 @
. Total amount of fuel saved : from 0 gal to 9999.999 gal
NOTE
. When the trip meter is reset , the corresponding accumulated time and the amount of fuel saving are
This screen displays each tire pressure .
When a tire is deflated , the deflated tire and the tire pressure will be displayed on the screen in yellow .
NOTE
. The tire pressure values are displayed several minutes after driving .
. You can set the tire pressure units . For details about setting the units , refer to “ General settings ” FP197 ( 11.6-inch display models ) or “ Gen-
