182
Combination Meter Display ( Color LCD )
NOTE
The driving range on the remaining fuel is only a guide . The indicated value may differ from the actual driving range on the remaining fuel , so you must immediately fill the tank when the low fuel warning light illuminates .
& Telltale Screen s03bn09
left in ascending order of severity .
. If there are 6 or more warning messages to display , the indicators will be displayed in sequential order .
Mark Name Page
Door open indicator light
Engine hood open warning light
LED headlight warning light
High beam assist indicator
Steering Responsive Headlight OFF indicator light
Steering Responsive Headlight warning light
166
166
175
174
175
175
Mark Name Page
RAB warning indicator ( if equipped )
RAB OFF indicator ( if equipped )
Sonar Audible Alarm OFF indicator ( if equipped )
BSD / RCTA warning indicator ( if equipped )
BSD / RCTA OFF indicator ( if equipped )
Hill descent control indicator light
Auto Start Stop warning light ( yellow )
Auto Start Stop indicator light ( green )
177
177
177
176
176
176
175
175
|

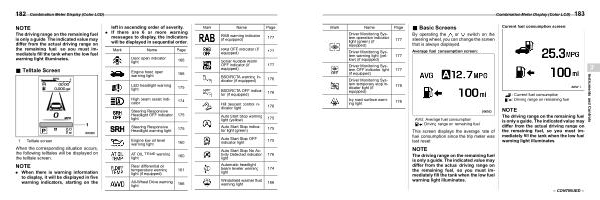

1 Telltale screen
When the corresponding situation occurs , the following telltales will be displayed on the telltale screen .
NOTE
. When there is warning information to display , it will be displayed in five warning indicators , starting on the
|
Engine low oil level warning light
AT OIL TEMP warning light
Rear differential oil temperature warning light ( if equipped )
All-Wheel Drive warning light
|
160
160
161
166
|
Auto Start Stop OFF indicator light
Auto Start Stop No Activity Detected indicator light
Automatic headlight beam leveler warning light
Windshield washer fluid warning light
|
175
176
174
166
|
