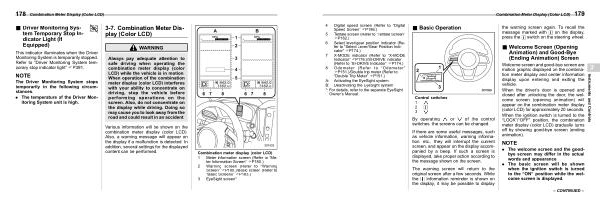

Combination Meter Display ( Color LCD ) 179 |
||||||||
|
4 Digital speed screen ( Refer to “ Digital Speed Screen ” FP186 .)
5 Telltale screen ( Refer to “ Telltale Screen ” FP182 .)
6 Select lever / gear position indicator ( Refer to “ Select Lever / Gear Position Indicator ” FP174 .)
7 X-MODE indicator ( Refer to “ X-MODE Indicator ” FP176 .)/ SI-DRIVE indicator ( Refer to “ SI-DRIVE Indicator ” FP174 .)
8 Odometer ( Refer to “ Odometer ” FP151 .)/ Double trip meter ( Refer to “ Double Trip Meter ” FP151 .)
A : Activating the EyeSight system B : Deactivating the EyeSight system
*: For details , refer to the separate EyeSight Owner ’ s Manual .
|
& Basic Operation
Control switches 1 2 3
s03bn01
|
By operating or of the control switches , the screens can be changed .
If there are some useful messages , such as vehicle information , warning information , etc ., they will interrupt the current screen , and appear on the display accompanied by a beep . If such a screen is displayed , take proper action according to the message shown on the screen .
The warning screen will return to the original screen after a few seconds . While the information reminder is shown on the display , it may be possible to display
|
the warning screen again . To recall the message marked with on the display , press the switch on the steering wheel .
& Welcome Screen ( Opening Animation ) and Good-Bye ( Ending Animation ) Screen
s03bn08
Welcome screen and good-bye screen are motion graphic displayed on the combination meter display and center information display upon entering and exiting the vehicle .
When the driver ’ s door is opened and closed after unlocking the door , the welcome screen ( opening animation ) will appear on the combination meter display ( color LCD ) for approximately 20 seconds .
When the ignition switch is turned to the “ LOCK ”/“ OFF ” position , the combination meter display ( color LCD ) gradually turns off by showing good-bye screen ( ending animation ).
NOTE
. The welcome screen and the goodbye screen may differ in the actual words and appearance .
. The basic screen will be shown when the ignition switch is turned to the “ ON ” position while the welcome screen is displayed .
|
3
Instruments and Controls
|
||||
– CONTINUED – |
