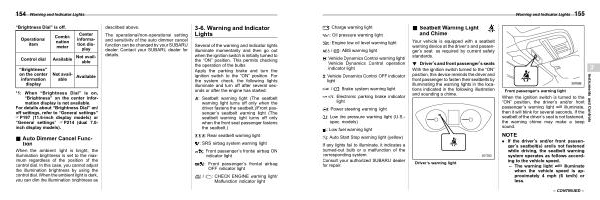

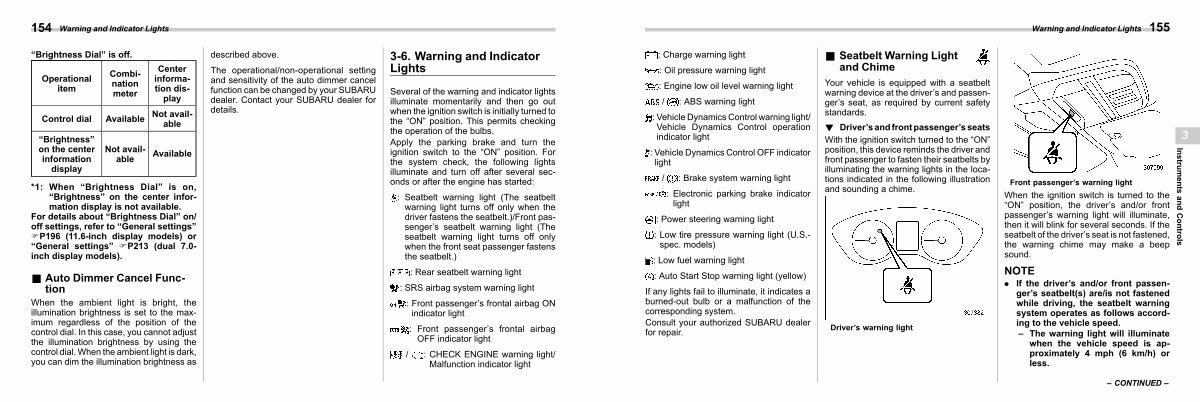

Warning and Indicator Lights 155 |
||||||||||||||
|
: Charge warning light
: Oil pressure warning light
: Engine low oil level warning light
/ : ABS warning light
: Vehicle Dynamics Control warning light / Vehicle Dynamics Control operation indicator light
: Vehicle Dynamics Control OFF indicator light
|
/ : Brake system warning light
: Electronic parking brake indicator light
: Power steering warning light
|
: Low tire pressure warning light ( U . S . - spec . models )
: Low fuel warning light
: Auto Start Stop warning light ( yellow )
If any lights fail to illuminate , it indicates a burned-out bulb or a malfunction of the corresponding system .
Consult your authorized SUBARU dealer for repair .
|
& Seatbelt Warning Light and Chime s03ae01
Your vehicle is equipped with a seatbelt warning device at the driver ’ s and passenger ’ s seat , as required by current safety standards .
! Driver ’ s and front passenger ’ s seats s03ae0114
With the ignition switch turned to the “ ON ” position , this device reminds the driver and front passenger to fasten their seatbelts by illuminating the warning lights in the locations indicated in the following illustration and sounding a chime .
Driver ’ s warning light
|
Front passenger ’ s warning light
When the ignition switch is turned to the “ ON ” position , the driver ’ s and / or front passenger ’ s warning light will illuminate , then it will blink for several seconds . If the seatbelt of the driver ’ s seat is not fastened , the warning chime may make a beep sound .
NOTE
. If the driver ’ s and / or front passenger ’ s seatbelt ( s ) are / is not fastened while driving , the seatbelt warning system operates as follows according to the vehicle speed . – The warning light will illuminate when the vehicle speed is approximately 4 mph ( 6 km / h ) or less .
|
3
Instruments and Controls
|
|||||||||
– CONTINUED – |
