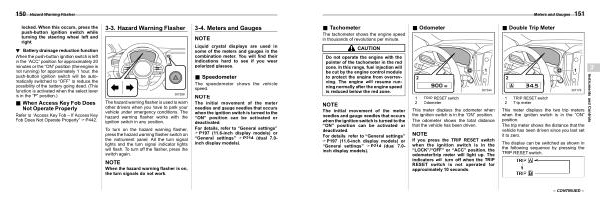

Meters and Gauges 151 |
|
& Tachometer s03ad06
The tachometer shows the engine speed in thousands of revolutions per minute .
|
& Odometer |
s03ad04 |
& Double Trip Meter |
s03ad05 |
|
CAUTION |
|||||
|
Do not operate the engine with the pointer of the tachometer in the red zone . In this range , fuel injection will be cut by the engine control module to protect the engine from overrevving . The engine will resume running normally after the engine speed is reduced below the red zone .
NOTE
The initial movement of the meter needles and gauge needles that occurs when the ignition switch is turned to the “ ON ” position can be activated or deactivated .
For details , refer to “ General settings ” FP197 ( 11.6-inch display models ) or “ General settings ” FP214 ( dual 7.0- inch display models ).
|
1 TRIP RESET switch 2 Odometer
This meter displays the odometer when the ignition switch is in the “ ON ” position .
The odometer shows the total distance that the vehicle has been driven .
NOTE
If you press the TRIP RESET switch when the ignition switch is in the “ LOCK ”/“ OFF ” or “ ACC ” position , the odometer / trip meter will light up . The indicators will turn off when the TRIP RESET switch is not operated for approximately 10 seconds .
|
1 TRIP RESET switch 2 Trip meter
This meter displays the two trip meters when the ignition switch is in the “ ON ” position .
The trip meter shows the distance that the vehicle has been driven since you last set it to zero .
The display can be switched as shown in the following sequence by pressing the TRIP RESET switch .
|
3
Instruments and Controls
|
||||||||||
– CONTINUED – |
|||||||||||||
