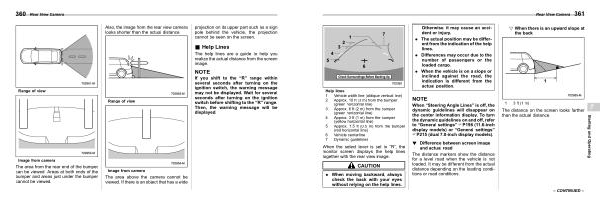

Rear View Camera 361 |
||||
|
Help lines 1 Vehicle width line ( oblique vertical line )
2 Approx . 10 ft ( 3 m ) from the bumper ( green horizontal line )
3 Approx . 6 ft ( 2 m ) from the bumper ( green horizontal line )
4 Approx . 3 ft ( 1 m ) from the bumper ( yellow horizontal line )
5 Approx . 1.5 ft ( 0.5 m ) from the bumper ( red horizontal line )
6 Vehicle centerline 7 Dynamic guidelines
When the select lever is set to “ R ”, the monitor screen displays the help lines together with the rear view image .
CAUTION
. When moving backward , always check the back with your eyes without relying on the help lines .
|
Otherwise , it may cause an accident or injury .
. The actual position may be different from the indication of the help lines .
. Differences may occur due to the number of passengers or the loaded cargo .
. When the vehicle is on a slope or inclined against the road , the indication is different from the actual position .
NOTE
When “ Steering Angle Lines ” is off , the dynamic guidelines will disappear on the center information display . To turn the dynamic guidelines on and off , refer to “ General settings ” FP198 ( 11.6-inch display models ) or “ General settings ” FP215 ( dual 7.0-inch display models ).
! Difference between screen image and actual road s07br0301
The distance markers show the distance for a level road when the vehicle is not loaded . It may be different from the actual distance depending on the loading conditions or road conditions .
|
! When there is an upward slope at the back s07br030101 |
1 3 ft ( 1 m )
The distance on the screen looks farther than the actual distance .
– CONTINUED –
|
