rubbers ) with new ones . For replacement instructions , refer to “ Replacement of Wiper Blades ” FP484 . |
! Wiper intermittent time control s03am0103 |
|||||||||||||||||||||||||
|

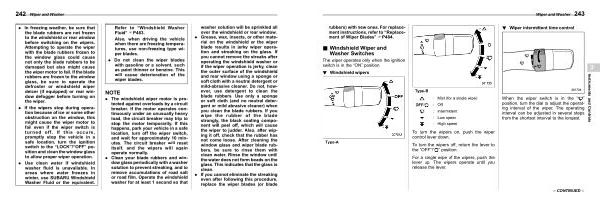

& Windshield Wiper and Washer Switches s03am01
The wiper operates only when the ignition switch is in the “ ON ” position .
! Windshield wipers
s03am0101
|
Type-B |
|
When the wiper switch is in the “ ” position , turn the dial to adjust the operating interval of the wiper . The operating interval can be adjusted in several steps from the shortest interval to the longest . |
3
Instruments and Controls
|
||||||||||||||||||||||
Type-A |
To turn the wipers on , push the wiper control lever down .
To turn the wipers off , return the lever to the “ OFF ”/“ ” position .
|
|||||||||||||||||||||||||
For a single wipe of the wipers , push the lever up . The wipers operate until you release the lever . |
||||||||||||||||||||||||||
– CONTINUED – |
