Seat , seatbelt and SRS airbags / SRS airbag ( Supplemental Restraint System airbag )
& Components
S01AH11

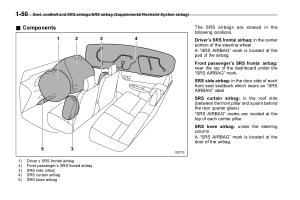

The SRS airbags are stowed in the following locations .
Driver ’ s SRS frontal airbag : in the center portion of the steering wheel
A “ SRS AIRBAG ” mark is located at the pad of the airbag .
Front passenger ’ s SRS frontal airbag : near the top of the dashboard under the “ SRS AIRBAG ” mark
SRS side airbag : in the door side of each front seat seatback which bears an “ SRS AIRBAG ” label
SRS curtain airbag : in the roof side ( between the front pillar and a point behind the rear quarter glass )
“ SRS AIRBAG ” marks are located at the top of each center pillar .
SRS knee airbag : under the steering column
A “ SRS AIRBAG ” mark is located at the door of the airbag .
1 ) |
Driver ’ s SRS frontal airbag |
2 ) |
Front passenger ’ s SRS frontal airbag |
3 ) |
SRS side airbag |
4 ) |
SRS curtain airbag |
5 ) |
SRS knee airbag |
