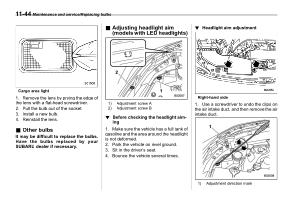

11-44 Maintenance and service / Replacing bulbs
& Adjusting headlight aim ( models with LED headlights )
S11BE57
! Headlight aim adjustment
S11BE5702
Cargo area light
1 . Remove the lens by prying the edge of the lens with a flat-head screwdriver .
2 . Pull the bulb out of the socket . 3 . Install a new bulb . 4 . Reinstall the lens .
& Other bulbs
S11BE29
It may be difficult to replace the bulbs . Have the bulbs replaced by your SUBARU dealer if necessary .
1 ) |
Adjustment screw A |
2 ) |
Adjustment screw B |
! Before checking the headlight aiming
S11BE5701
1 . Make sure the vehicle has a full tank of gasoline and the area around the headlight is not deformed .
2 . Park the vehicle on level ground . 3 . Sit in the driver ’ s seat . 4 . Bounce the vehicle several times .
Right-hand side
1 . Use a screwdriver to undo the clips on the air intake duct , and then remove the air intake duct .
1 ) Adjustment direction mark
