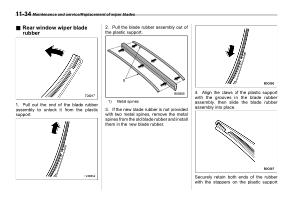

11-34 Maintenance and service / Replacement of wiper blades
& Rear window wiper blade rubber
S11AZ04
2 . Pull the blade rubber assembly out of the plastic support .
1 . Pull out the end of the blade rubber assembly to unlock it from the plastic support .
1 ) Metal spines
3 . If the new blade rubber is not provided with two metal spines , remove the metal spines from the old blade rubber and install them in the new blade rubber .
4 . Align the claws of the plastic support with the grooves in the blade rubber assembly , then slide the blade rubber assembly into place .
Securely retain both ends of the rubber with the stoppers on the plastic support
