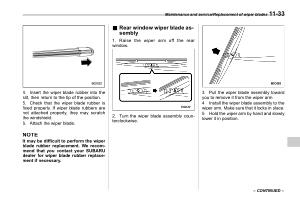

Maintenance and service / Replacement of wiper blades 11-33
& Rear window wiper blade assembly
S11AZ03
1 . Raise the wiper arm off the rear window .
4 . Insert the wiper blade rubber into the slit , then return to the tip of the position .
5 . Check that the wiper blade rubber is fixed properly . If wiper blade rubbers are not attached properly , they may scratch the windshield .
6 . Attach the wiper blade .
NOTE
It may be difficult to perform the wiper blade rubber replacement . We recommend that you contact your SUBARU dealer for wiper blade rubber replacement if necessary .
2 . Turn the wiper blade assembly counterclockwise .
3 . Pull the wiper blade assembly toward you to remove it from the wiper arm .
4 . Install the wiper blade assembly to the wiper arm . Make sure that it locks in place .
5 . Hold the wiper arm by hand and slowly lower it in position .
– CONTINUED –
