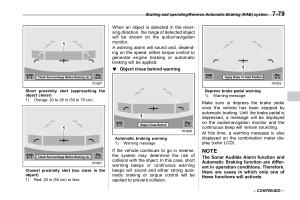

Starting and operating / Reverse Automatic Braking ( RAB ) system 7-79
When an object is detected in the reversing direction , the range of detected object will be shown on the audio / navigation monitor .
A warning alarm will sound and , depending on the speed , either torque control to generate engine braking or automatic braking will be applied .
! Object close behind warning
S07BN0302
Short proximity alert ( approaching the object closer )
1 ) Orange : 20 to 28 in ( 50 to 70 cm )
Closest proximity alert ( too close to the object ) 1 ) Red : 20 in ( 50 cm ) or less
Automatic braking warning 1 ) Warning message
If the vehicle continues to go in reverse , the system may determine the risk of collision with the object . In this case , short warning beeps or continuous warning beeps will sound and either strong automatic braking or torque control will be applied to prevent collision .
Depress brake pedal warning 1 ) Warning message
Make sure to depress the brake pedal once the vehicle has been stopped by automatic braking . Until the brake pedal is depressed , a message will be displayed on the audio / navigation monitor and the continuous beep will remain sounding .
At this time , a warning message is also displayed on the combination meter display ( color LCD ).
NOTE
The Sonar Audible Alarm function and Automatic Braking function are different in operation conditions . Therefore , there are cases in which only one of these functions will activate .
– CONTINUED –
