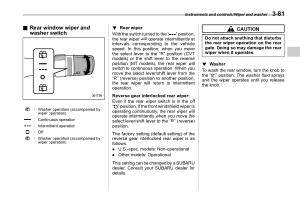

Instruments and controls / Wiper and washer 3-81
& Rear window wiper and washer switch
S03AM02
: Washer operation ( accompanied by wiper operation )
: Continuous operation : Intermittent operation : Off
: Washer operation ( accompanied by wiper operation )
! Rear wiper
S03AM0201
With the switch turned to the “ ” position , the rear wiper will operate intermittently at intervals corresponding to the vehicle speed . In this position , when you move the select lever to the “ R ” position ( CVT models ) or the shift lever to the reverse position ( MT models ), the rear wiper will switch to continuous operation . When you move the select lever / shift lever from the “ R ” ( reverse ) position to another position , the rear wiper will return to intermittent operation .
Reverse gear interlocked rear wiper :
Even if the rear wiper switch is in the off “ ” position , if the front windshield wiper is operating continuously , the rear wiper will operate intermittently when you move the select lever / shift lever to the “ R ” ( reverse ) position .
The factory setting ( default setting ) of the reverse gear interlocked rear wiper is as follows .
. U . S . -spec . models : Non-operational . Other models : Operational
This setting can be changed by a SUBARU dealer . Consult your SUBARU dealer for details .
CAUTION
Do not attach anything that disturbs the rear wiper operation on the rear gate . Doing so may damage the rear wiper when it operates .
! Washer
S03AM0202
To wash the rear window , turn the knob to the “ ” position . The washer fluid sprays and the wiper operates until you release the knob .
