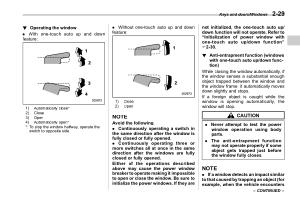

Keys and doors / Windows 2-29
! Operating the window
S02AH0702
. With one-touch auto up and down feature :
1 ) |
Automatically close * |
2 ) |
Close |
3 ) |
Open |
4 ) |
Automatically open * |
*: To stop the window halfway , operate the |
switch to opposite side . |
. Without one-touch auto up and down feature :
NOTE
Avoid the following .
. Continuously operating a switch in the same direction after the window is fully closed or fully opened . . Continuously operating three or more switches all at once in the same direction after the windows are fully closed or fully opened .
Either of the operations described above may cause the power window breaker to operate making it impossible to open or close the window . Be sure to initialize the power windows . If they are not initialized , the one-touch auto up / down function will not operate . Refer to “ Initialization of power window with one-touch auto up / down function ” F2-30 .
! Anti-entrapment function ( windows with one-touch auto up / down function )
S02AH0703
While closing the window automatically , if the window senses a substantial enough object trapped between the window and the window frame , it automatically moves down slightly and stops .
If a foreign object is caught while the window is opening automatically , the window will stop .
CAUTION
. Never attempt to test the power window operation using body parts .
. The anti-entrapment function may not operate properly if some object gets trapped just before the window fully closes .
NOTE
. If a window detects an impact similar to that caused by trapping an object ( for example , when the vehicle encounters
– CONTINUED –
