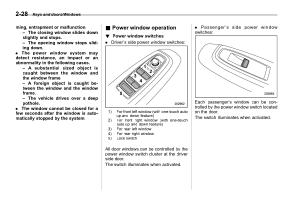

2-28
Keys and doors / Windows
ming , entrapment or malfunction . – The closing window slides down slightly and stops . – The opening window stops sliding down . . The power window system may detect resistance , an impact or an abnormality in the following cases . – A substantial sized object is caught between the window and the window frame . – A foreign object is caught between the window and the window frame . – The vehicle drives over a deep pothole . . The window cannot be closed for a few seconds after the window is automatically stopped by the system .
& Power window operation
S02AH07
! Power window switches
S02AH0701
. Driver ’ s side power window switches :
1 ) |
For front left window ( with one-touch auto |
up and down feature ) |
2 ) |
For front right window ( with one-touch |
auto up and down feature ) |
3 ) |
For rear left window |
4 ) |
For rear right window |
5 ) |
Lock switch |
All door windows can be controlled by the power window switch cluster at the driver side door .
The switch illuminates when activated .
. Passenger ’ s side power window switches :
Each passenger ’ s window can be controlled by the power window switch located on the door .
The switch illuminates when activated .
