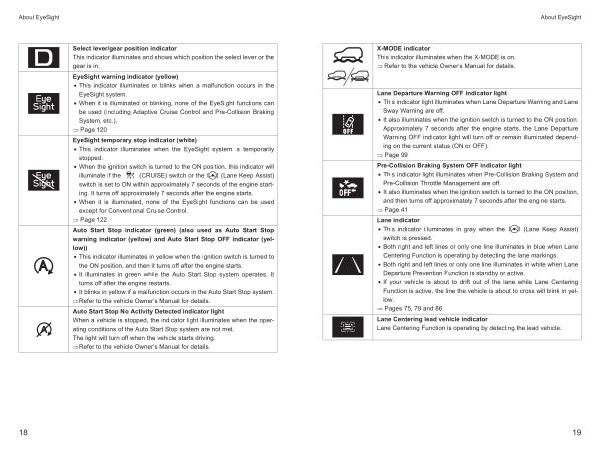

About EyeSight
X-MODE indicator This indicator illuminates when the X-MODE is on .
� Refer to the vehicle Owner ’ s Manual for details .
Lane Departure Warning OFF indicator light
• This indicator light illuminates when Lane Departure Warning and Lane Sway Warning are off .
• It also illuminates when the ignition switch is turned to the ON position . Approximately 7 seconds after the engine starts , the Lane Departure Warning OFF indicator light will turn off or remain illuminated depending on the current status ( ON or OFF ).
� Page 99
Pre-Collision Braking System OFF indicator light
• This indicator light illuminates when Pre-Collision Braking System and Pre-Collision Throttle Management are off .
• It also illuminates when the ignition switch is turned to the ON position , and then turns off approximately 7 seconds after the engine starts .
� Page 41
Lane indicator
• This indicator illuminates in gray when the ( Lane Keep Assist ) switch is pressed .
• Both right and left lines or only one line illuminates in blue when Lane Centering Function is operating by detecting the lane markings .
• Both right and left lines or only one line illuminates in white when Lane Departure Prevention Function is standby or active .
• If your vehicle is about to drift out of the lane while Lane Centering Function is active , the line the vehicle is about to cross will blink in yellow .
� Pages 75 , 79 and 86 Lane Centering lead vehicle indicator Lane Centering Function is operating by detecting the lead vehicle .
19
