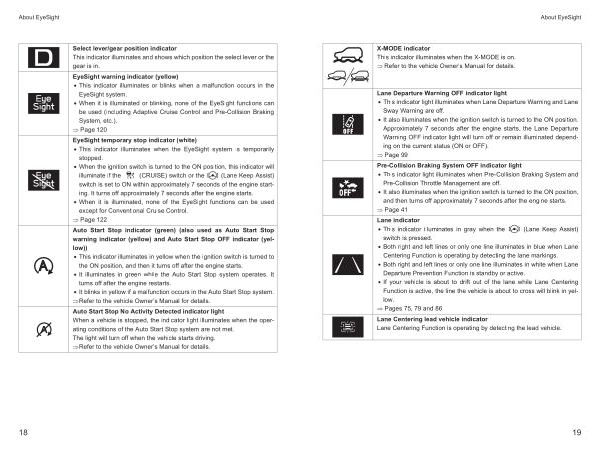

About EyeSight
Select lever / gear position indicator This indicator illuminates and shows which position the select lever or the gear is in . EyeSight warning indicator ( yellow )
• This indicator illuminates or blinks when a malfunction occurs in the EyeSight system .
• When it is illuminated or blinking , none of the EyeSight functions can be used ( including Adaptive Cruise Control and Pre-Collision Braking System , etc .).
� Page 120
EyeSight temporary stop indicator ( white )
• This indicator illuminates when the EyeSight system is temporarily stopped .
• When the ignition switch is turned to the ON position , this indicator will illuminate if the ( CRUISE ) switch or the ( Lane Keep Assist ) switch is set to ON within approximately 7 seconds of the engine starting . It turns off approximately 7 seconds after the engine starts .
• When it is illuminated , none of the EyeSight functions can be used except for Conventional Cruise Control .
� Page 122 Auto Start Stop indicator ( green ) ( also used as Auto Start Stop warning indicator ( yellow ) and Auto Start Stop OFF indicator ( yellow ))
• This indicator illuminates in yellow when the ignition switch is turned to the ON position , and then it turns off after the engine starts .
• It illuminates in green while the Auto Start Stop system operates . It turns off after the engine restarts .
• It blinks in yellow if a malfunction occurs in the Auto Start Stop system . �Refer to the vehicle Owner ’ s Manual for details . Auto Start Stop No Activity Detected indicator light When a vehicle is stopped , the indicator light illuminates when the operating conditions of the Auto Start Stop system are not met . The light will turn off when the vehicle starts driving . �Refer to the vehicle Owner ’ s Manual for details .
18
