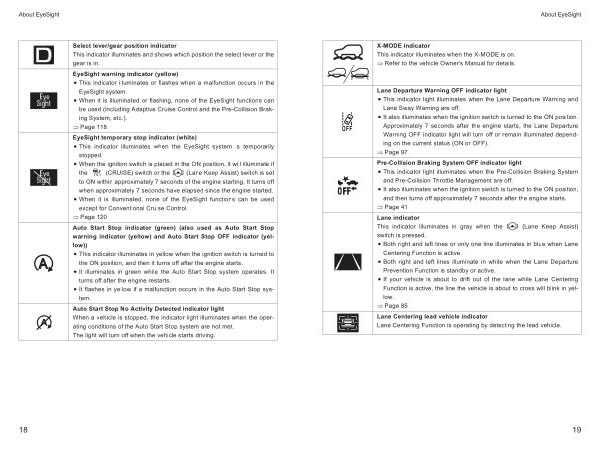

About EyeSight
Select lever/gear position indicator
This indicator illuminates and shows which position the select lever or the
gear is in.
EyeSight warning indicator (yellow)
• This indicator illuminates or flashes when a malfunction occurs in the
EyeSight system.
• When it is illuminated or flashing, none of the EyeSight functions can
be used (including Adaptive Cruise Control and the Pre-Collision Braking
System, etc.).
� Page 118
EyeSight temporary stop indicator (white)
• This indicator illuminates when the EyeSight system is temporarily
stopped.
• When the ignition switch is placed in the ON position, it will illuminate if
the (CRUISE) switch or the (Lane Keep Assist) switch is set
to ON within approximately 7 seconds of the engine starting. It turns off
when approximately 7 seconds have elapsed since the engine started.
• When it is illuminated, none of the EyeSight functions can be used
except for Conventional Cruise Control.
� Page 120
Auto Start Stop indicator (green) (also used as Auto Start Stop
warning indicator (yellow) and Auto Start Stop OFF indicator (yellow))
• This indicator illuminates in yellow when the ignition switch is turned to
the ON position, and then it turns off after the engine starts.
• It illuminates in green while the Auto Start Stop system operates. It
turns off after the engine restarts.
• It flashes in yellow if a malfunction occurs in the Auto Start Stop system.
Auto Start Stop No Activity Detected indicator light
When a vehicle is stopped, the indicator light illuminates when the operating
conditions of the Auto Start Stop system are not met.
The light will turn off when the vehicle starts driving.
18
