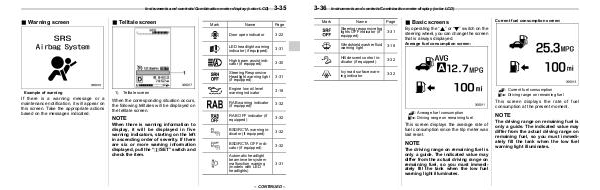

Instruments and controls/Combination meter display (color LCD)
& Warning screen
& Telltale screen
S03BN05
Example of warning
If there is a warning message or a
maintenance notification, it will appear on
this screen. Take the appropriate actions
based on the messages indicated.
S03BN09
Mark
Name
3-35
Page
Door open indicator 3-22
LED headlight warning
indicator (if equipped) 3-31
High beam assist indi-
cator (if equipped) 3-30
Steering Responsive
Headlight warning light
(if equipped) 3-31
Engine low oil level
warning indicator 3-18
When the corresponding situation occurs,
the following telltales will be displayed on
the telltale screen. RAB warning indicator
(if equipped) 3-32
NOTE RAB OFF indicator (if
equipped) 3-32
BSD/RCTA warning in-
dicator (if equipped) 3-32
BSD/RCTA OFF indi-
cator (if equipped) 3-32
Automatic headlight
beam leveler system
malfunction warning
(models with LED
headlights) 3-31
1)
Telltale screen
When there is warning information to
display, it will be displayed in five
warning indicators, starting on the left
in ascending order of severity. If there
are six or more warning information
displayed, pull the “ /SET” switch and
check the item.
– CONTINUED –
