About EyeSight

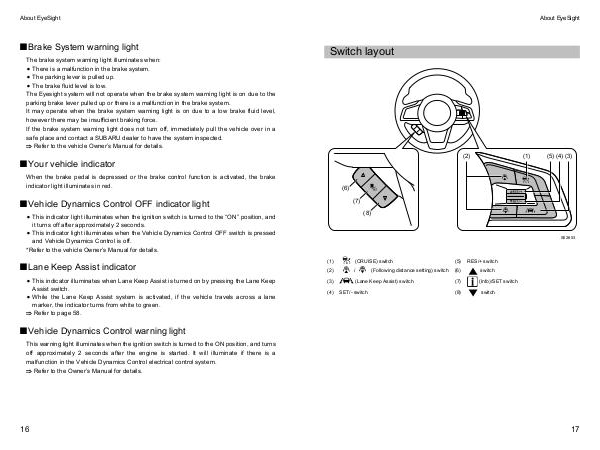

■ Brake System warning light
The brake system warning light illuminates when:
x There is a malfunction in the brake system.
x The parking lever is pulled up.
x The brake fluid level is low.
The Eyesight system will not operate when the brake system warning light is on due to the
parking brake lever pulled up or there is a malfunction in the brake system.
It may operate when the brake system warning light is on due to a low brake fluid level,
however there may be insufficient braking force.
If the brake system warning light does not turn off, immediately pull the vehicle over in a
safe place and contact a SUBARU dealer to have the system inspected.
Refer to the vehicle Owner’s Manual for details.
■ Your vehicle indicator
When the brake pedal is depressed or the brake control function is activated, the brake
indicator light illuminates in red.
■ Vehicle Dynamics Control OFF indicator light
x This indicator light illuminates when the ignition switch is turned to the “ON” position, and
it turns off after approximately 2 seconds.
x This indicator light illuminates when the Vehicle Dynamics Control OFF switch is pressed
and Vehicle Dynamics Control is off.
*Refer to the vehicle Owner’s Manual for details.
■ Lane Keep Assist indicator
x This indicator illuminates when Lane Keep Assist is turned on by pressing the Lane Keep
Assist switch.
x While the Lane Keep Assist system is activated, if the vehicle travels across a lane
marker, the indicator turns from white to green.
Refer to page 58.
■ Vehicle Dynamics Control warning light
This warning light illuminates when the ignition switch is turned to the ON position, and turns
off approximately 2 seconds after the engine is started. It will illuminate if there is a
malfunction in the Vehicle Dynamics Control electrical control system.
Refer to the Owner’s Manual for details.
16
