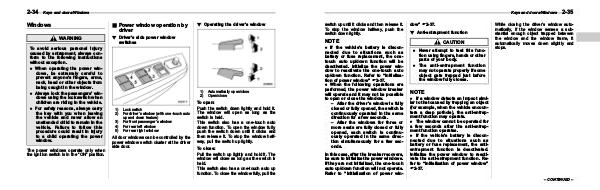

2-34
Keys and doors/Windows
& Power window operation by
driver
Windows
WARNING
To avoid serious personal injury
caused by entrapment, always conform to the following instructions
without exception.
. When operating the power windows, be extremely careful to
prevent anyone’s fingers, arms,
neck, head or other objects from
being caught in the window.
. Always lock the passengers’ windows using the lock switch when
children are riding in the vehicle.
. For safety reasons, always carry
the key with you when leaving
the vehicle and never allow an
unattended child to remain in the
vehicle. Failure to follow this
procedure could result in injury
to a child operating the power
window.
The power windows operate only when
the ignition switch is in the “ON” position.
! Operating the driver’s window
! Driver’s side power window
switches
1)
2)
1)
2)
3)
4)
5)
Lock switch
For driver’s window (with one-touch auto
up and down feature)
For front passenger’s window
For rear left window
For rear right window
All door windows can be controlled by the
power window switch cluster at the driver
side door.
Automatically open/close
Open/close
To open:
Push the switch down lightly and hold it.
The window will open as long as the
switch is held.
This switch also has a one-touch auto
down function. To open the window fully,
push the switch down until it clicks and
then release it. To stop the window halfway, pull the switch up lightly.
To close:
Pull the switch up lightly and hold it. The
window will close as long as the switch is
held.
This switch also has a one-touch auto up
function. To close the window fully, pull the
